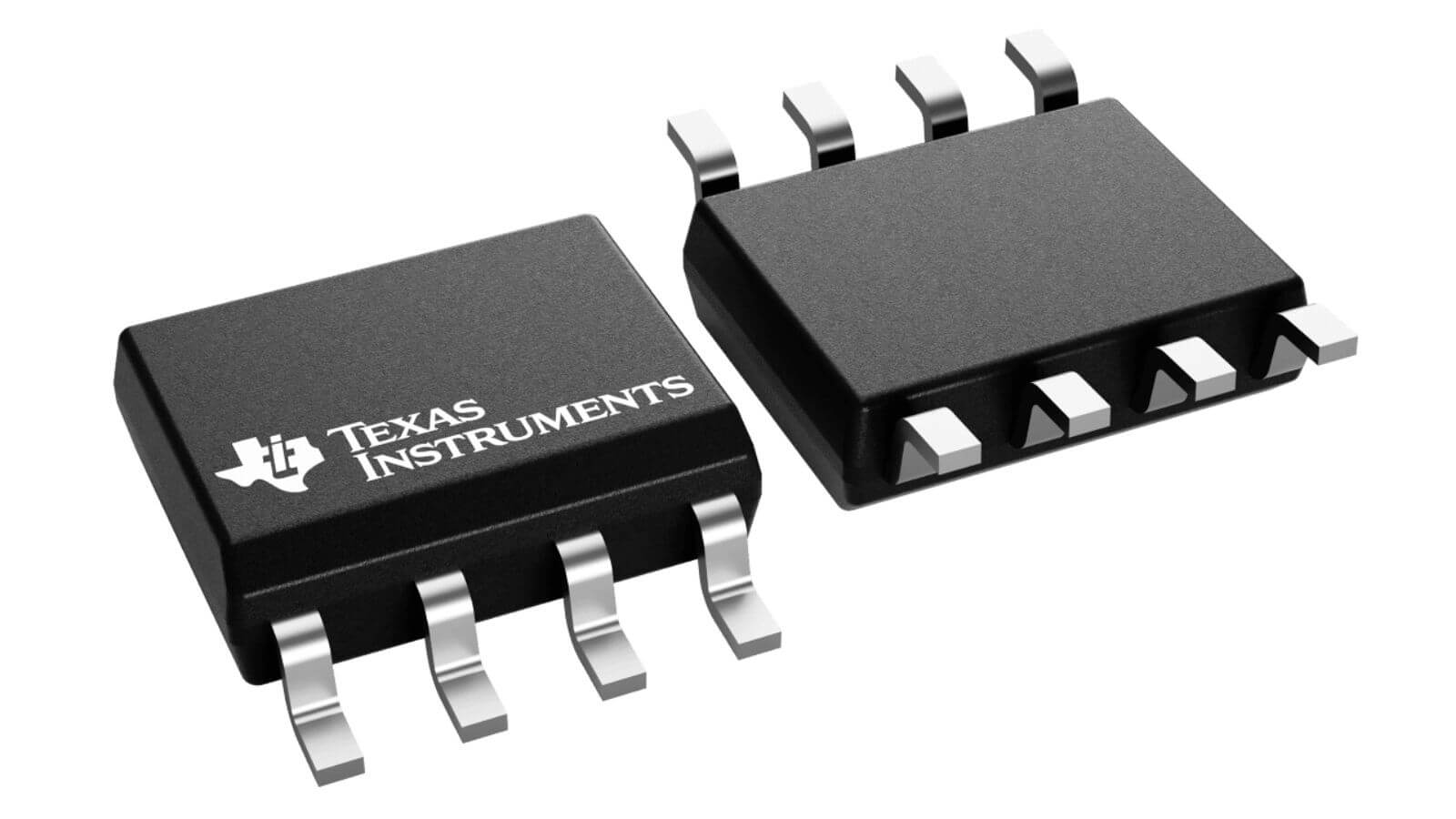

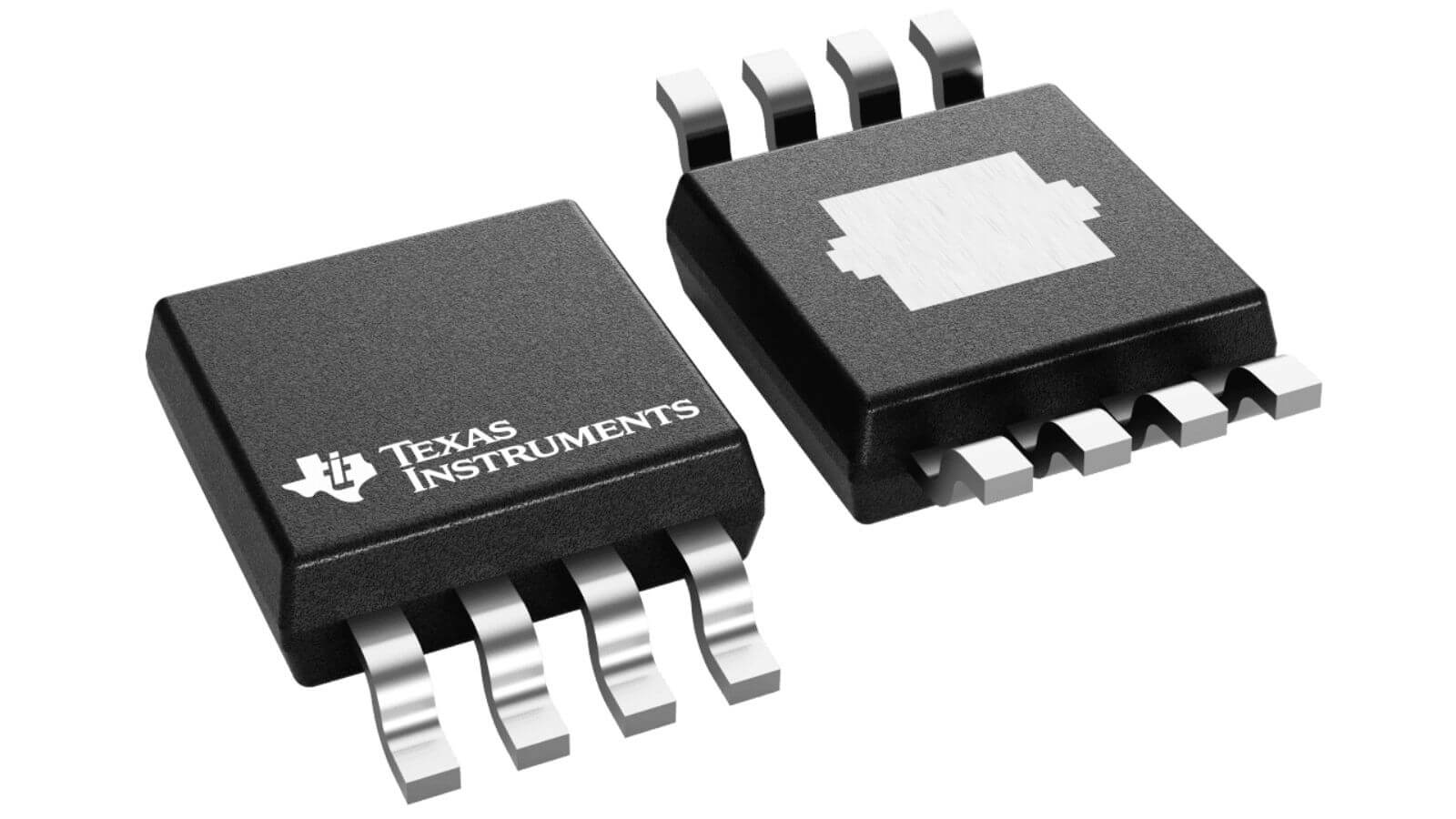

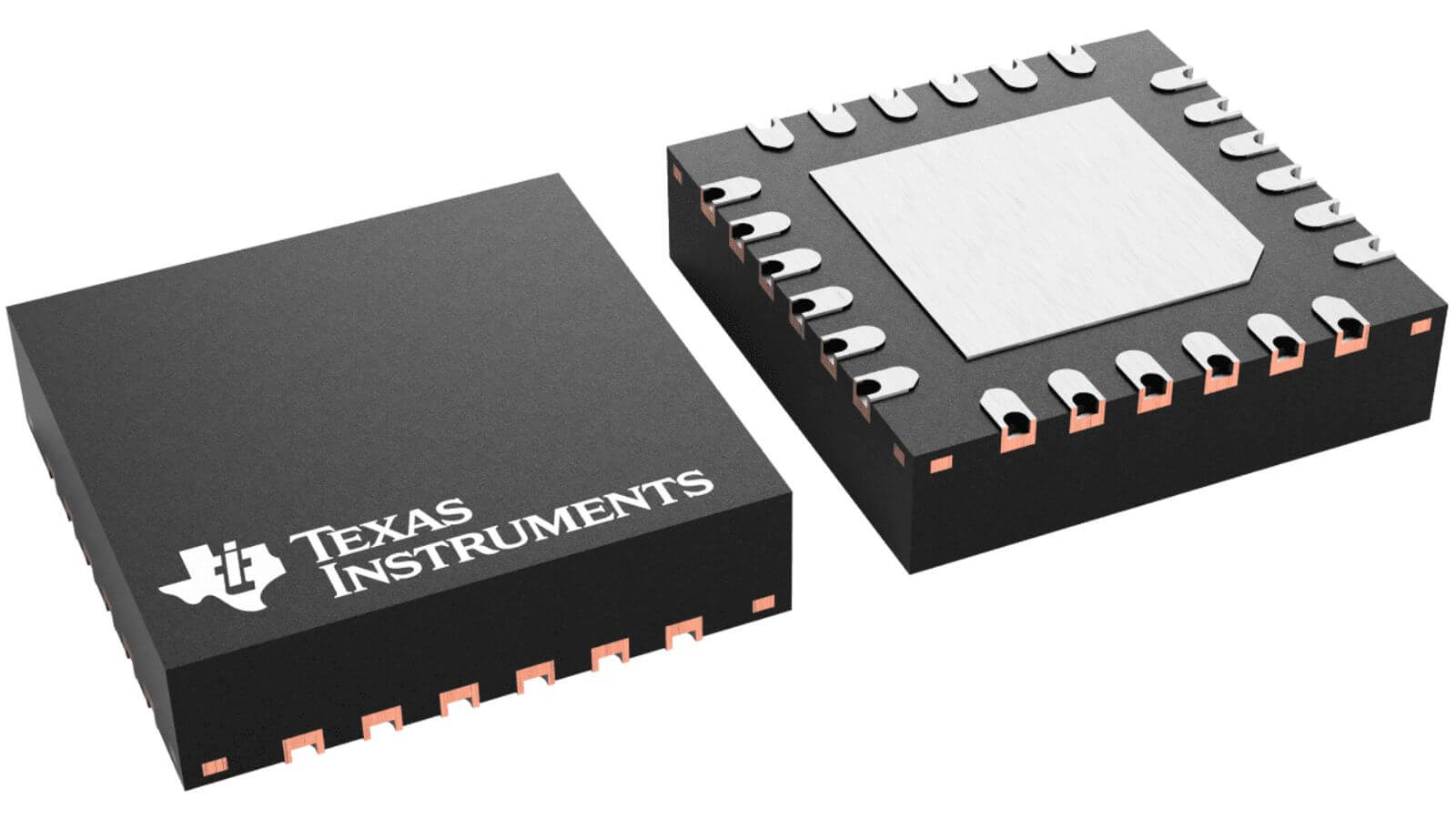

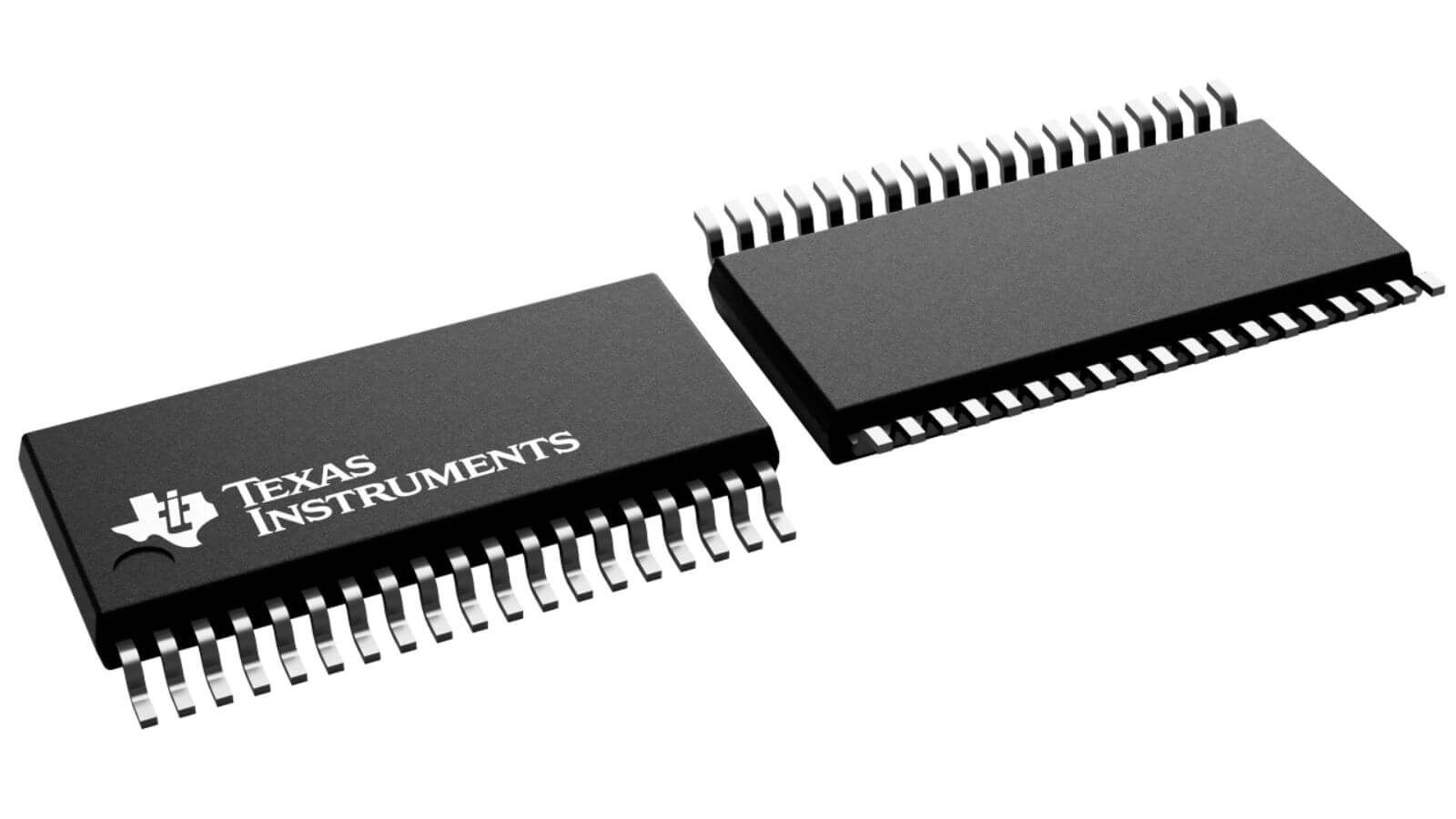

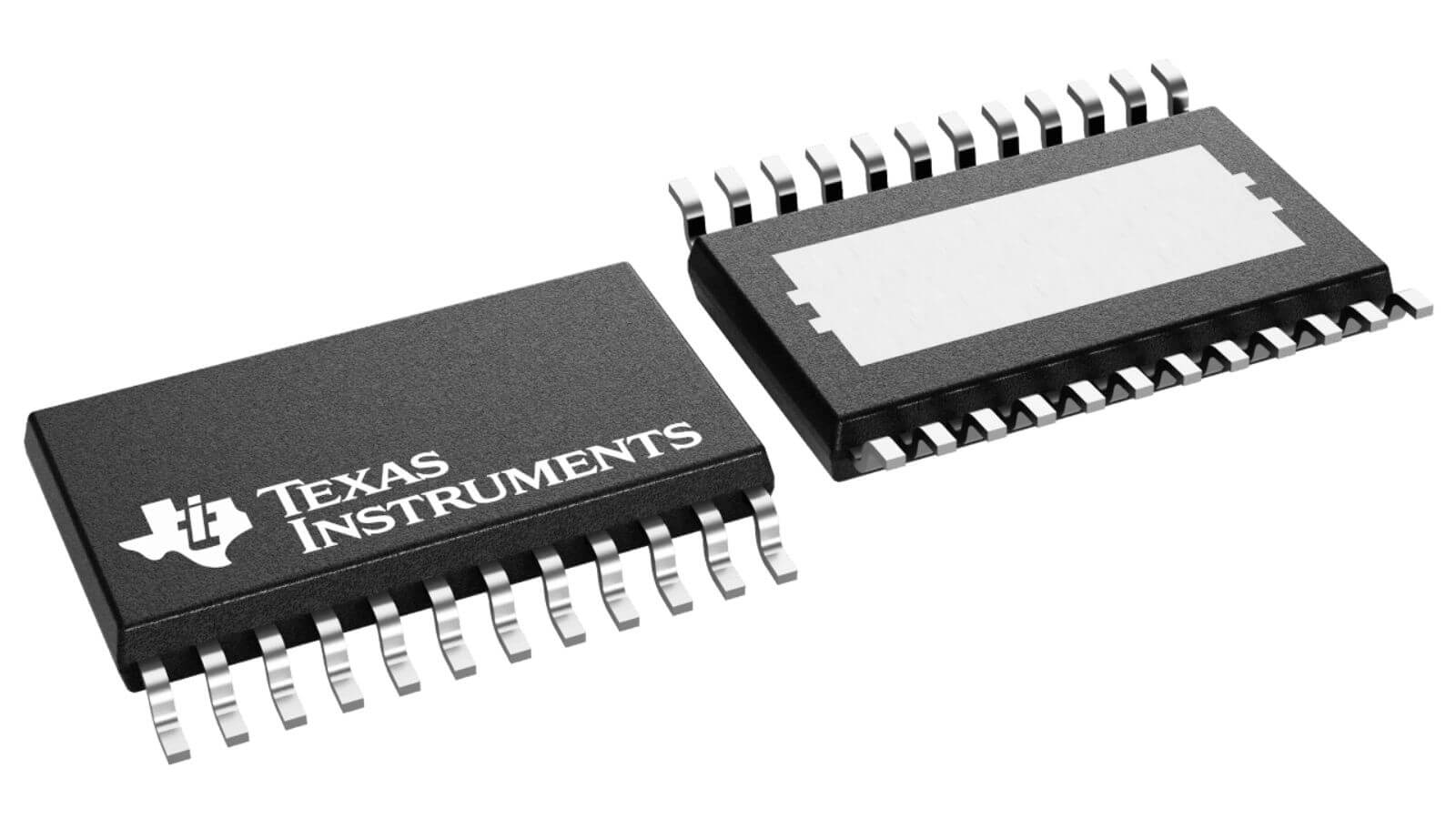

What Are Motor Driver ICs?

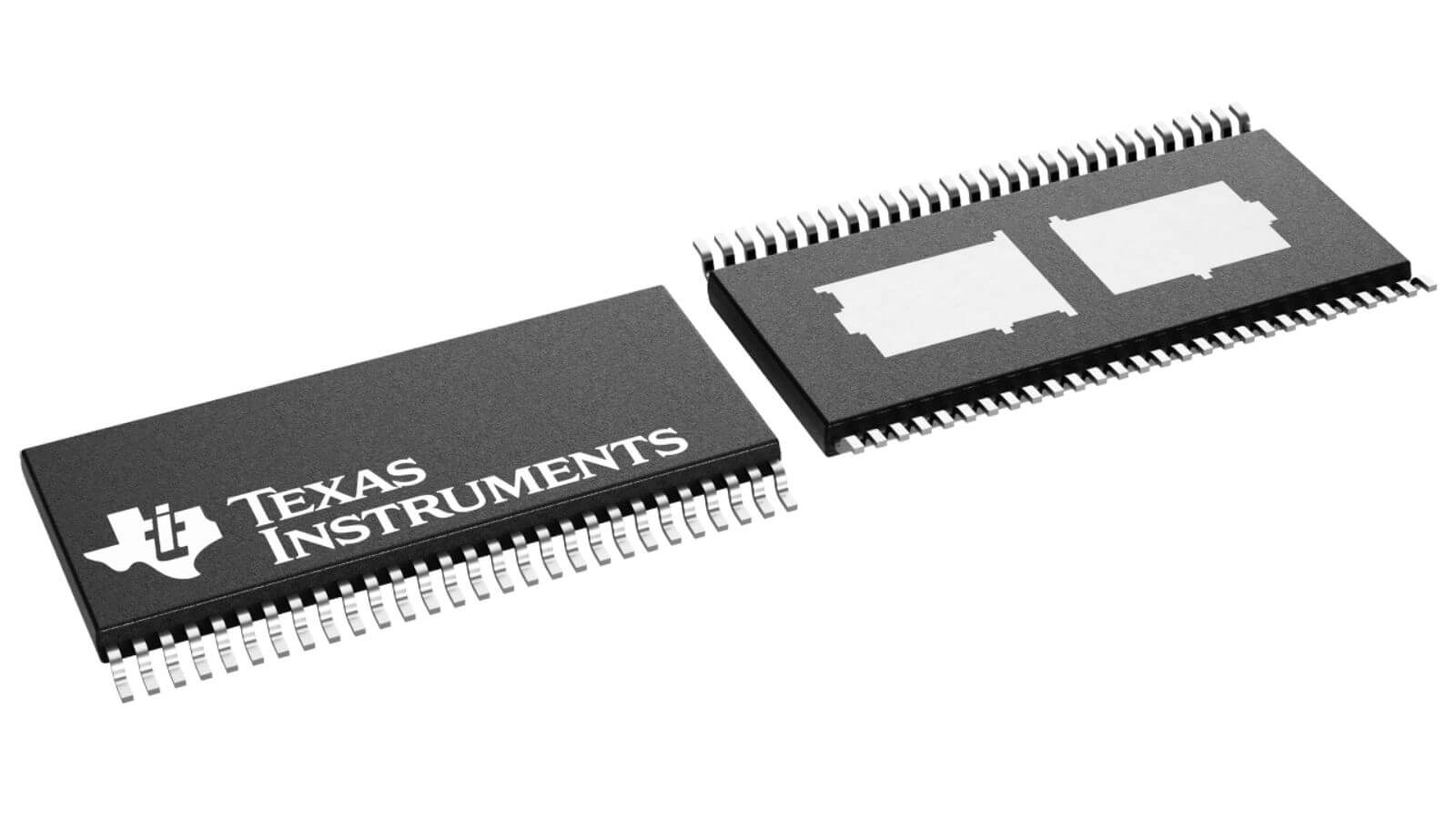

Motor driver integrated circuits are specialized power electronics devices that translate low-power control signals from microcontrollers or DSPs into high-current, precisely timed gate drive sequences for power transistors (MOSFETs, IGBTs, GaN FETs), enabling efficient and controllable electromechanical energy conversion in motors. These ICs integrate gate drivers, shoot-through protection, current sensing, thermal monitoring, and commutation logic, simplifying motor control system design while ensuring safe, reliable operation across brushed DC, brushless DC, stepper, and AC induction motor topologies.

Core Functions

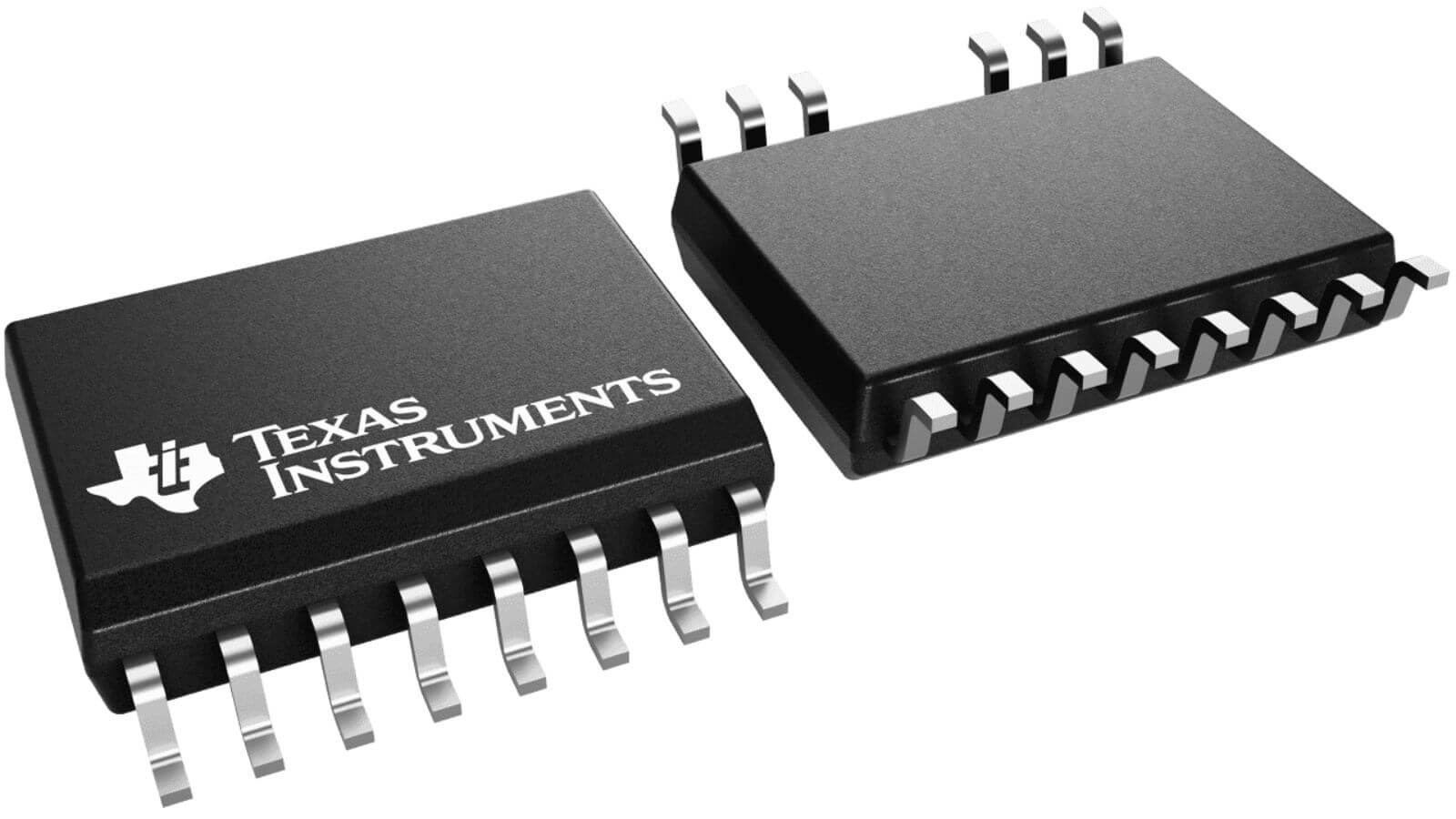

• Gate Drive & Power Switching: Delivering high-peak current pulses (500mA–4A) to rapidly charge/discharge MOSFET/IGBT gates with precise timing control, minimizing switching losses and dead-time distortion. Advanced drivers incorporate adaptive dead-time insertion, slew-rate control (dV/dt limiting to reduce EMI), and bootstrap charge pump circuits for high-side gate drive in half-bridge and full-bridge configurations.
• Commutation & PWM Control: Generating synchronized switching patterns for motor phases based on Hall sensor feedback, back-EMF zero-crossing detection, or sensorless field-oriented control (FOC) algorithms. PWM frequency typically ranges from 20kHz to 100kHz for silent operation and efficient filtering, with current-mode or voltage-mode control loops regulating torque and speed with <1% steady-state error.
• Protection & Diagnostics: Implementing overcurrent protection (cycle-by-cycle current limiting, latch-off shutdown), overvoltage/undervoltage lockout (UVLO), overtemperature shutdown (150°C–175°C junction temp), and fault reporting via diagnostic pins or SPI/I2C interfaces. Short-circuit detection responds in <1µs to prevent MOSFET/IGBT destruction, while thermal fold-back gradually reduces output current to prevent thermal runaway.
• Current Sensing & Feedback: Integrating shunt resistor amplifiers, inline current sense, or MOSFET RDS(on) sensing to measure motor phase currents for closed-loop torque control, stall detection, and load monitoring. High-side/low-side current measurement with <±3% accuracy enables precise vector control in BLDC/PMSM drives and microstepping in stepper motors (1/256 microstep resolution).

Technical Principles

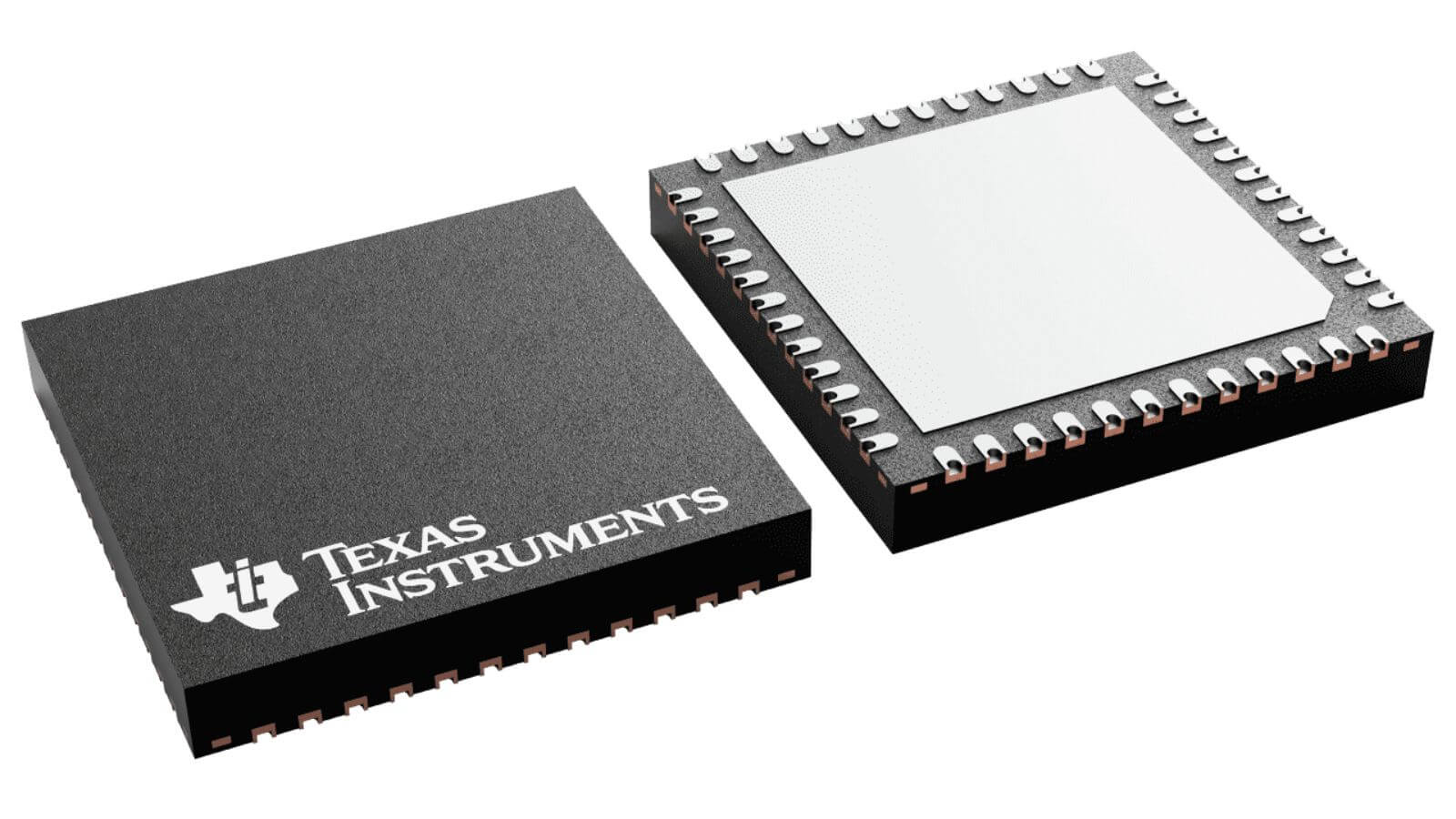

Brushed DC motor drivers employ H-bridge topologies (four MOSFET switches in full-bridge configuration) to enable bidirectional current flow and dynamic braking. Control modes include sign-magnitude PWM (one PWM signal + direction bit) or locked anti-phase PWM (both sides modulated 180° out-of-phase). Integrated current regulation limits motor current via PWM duty-cycle modulation based on shunt resistor feedback, preventing winding burnout and enabling soft-start/soft-stop profiles to reduce mechanical stress.

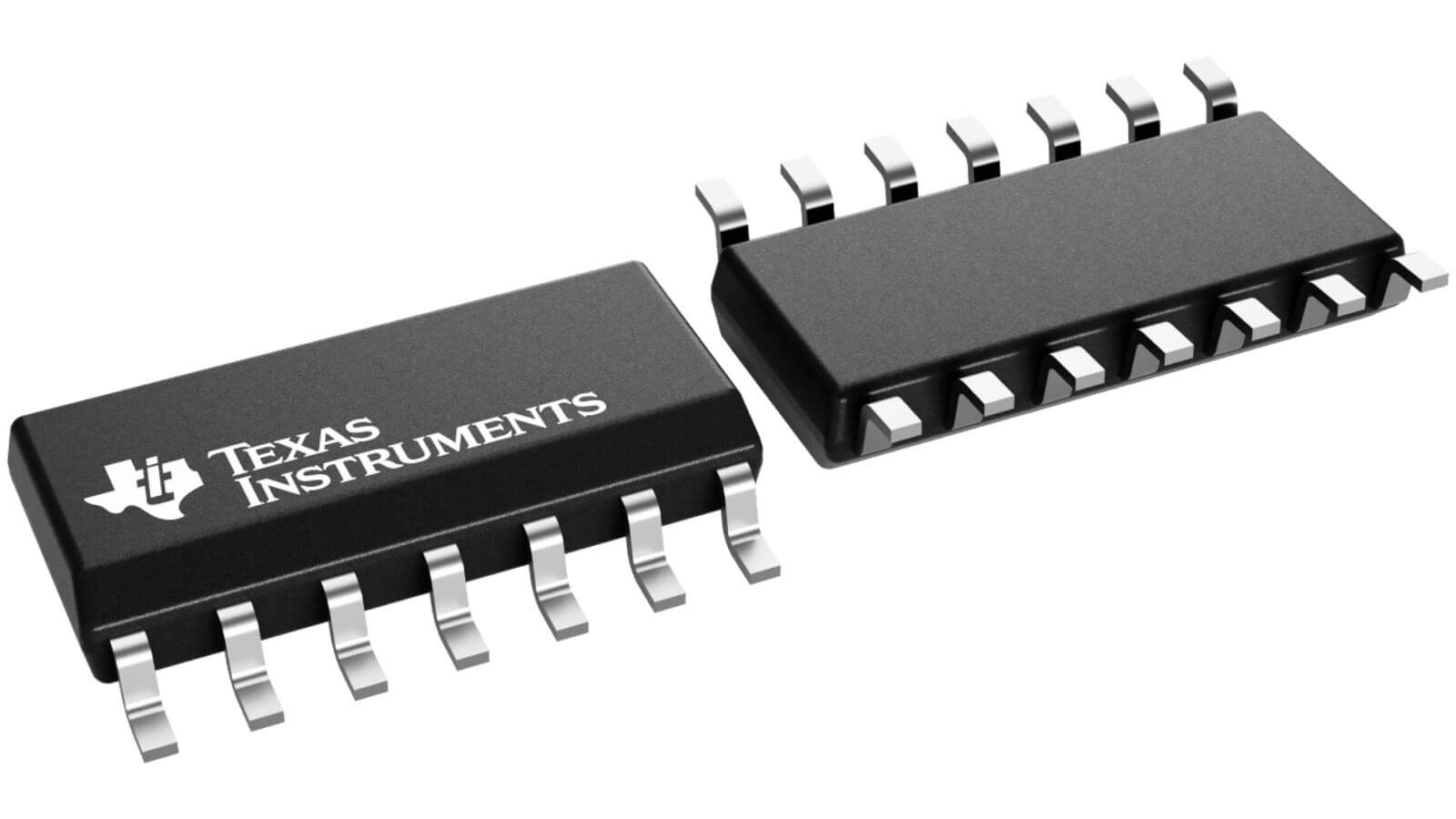

Brushless DC (BLDC) motor drivers use three-phase inverter bridges (six MOSFETs) driven by 120° or 180° trapezoidal commutation patterns synchronized to rotor position via Hall sensors or sensorless back-EMF detection. Sensorless operation monitors back-EMF zero-crossings during PWM off-time, reconstructing rotor angle to advance commutation timing for optimal torque production. Advanced drivers integrate field-oriented control (FOC) with Park/Clarke transforms, converting three-phase currents into d-q axis components for independent flux and torque control, achieving efficiency >95% and torque ripple <5%.

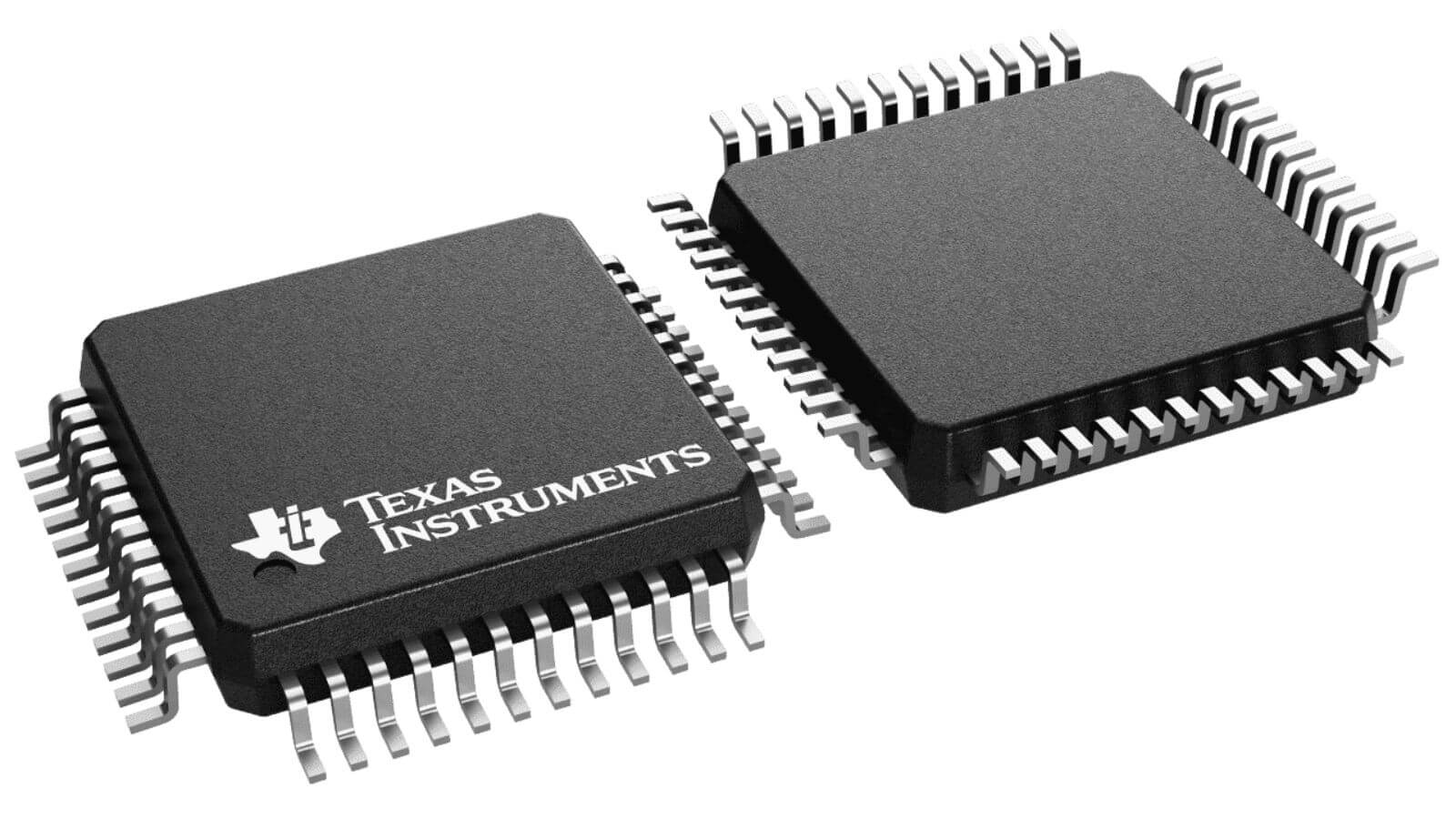

Stepper motor drivers generate bipolar current waveforms in dual H-bridges using chopper regulation—applying full supply voltage until target current is reached, then chopping to maintain current at the setpoint. Microstepping divides full steps (200 steps/rev for 1.8° motors) into 256 or more microsteps using sinusoidal current profiling, achieving smooth motion and positioning resolution <0.01°. Integrated indexers accept step/direction commands from motion controllers, while built-in current decay modes (slow, fast, mixed decay) optimize torque-speed characteristics for specific load profiles.
