What Are Isolation, Switches & Multiplexers ICs?

Isolation, switches, and multiplexers represent critical building blocks in modern electronic systems, enabling safe signal transfer across voltage domains, flexible signal routing, and efficient resource sharing. These integrated circuits serve distinct yet complementary functions: isolation ICs protect sensitive circuitry and personnel from high voltages and electrical noise; switches route signals between multiple paths; and multiplexers consolidate multiple inputs into shared resources, optimizing system architecture and reducing component count.

Core Functions

• Galvanic Isolation: Creating electrical barriers between high-voltage and low-voltage domains to protect sensitive electronics, prevent ground loops, and ensure personnel safety while maintaining signal/power transmission through capacitive, magnetic, or optical coupling (2.5kV to 10kV+ isolation ratings per UL/VDE/CSA standards).
• Signal Routing & Path Selection: Dynamically connecting inputs to outputs through analog switches and multiplexers, enabling time-division multiplexing, instrument channel selection, audio/video routing, and test equipment flexibility with minimal signal distortion (THD <0.01%, crosstalk <-80dB).
• Resource Optimization: Allowing multiple signal sources to share single ADCs, communication buses, or processing channels through multiplexed switching, reducing system cost and board space while maintaining throughput via high-speed switching (ns-range propagation delay, MHz+ bandwidth).

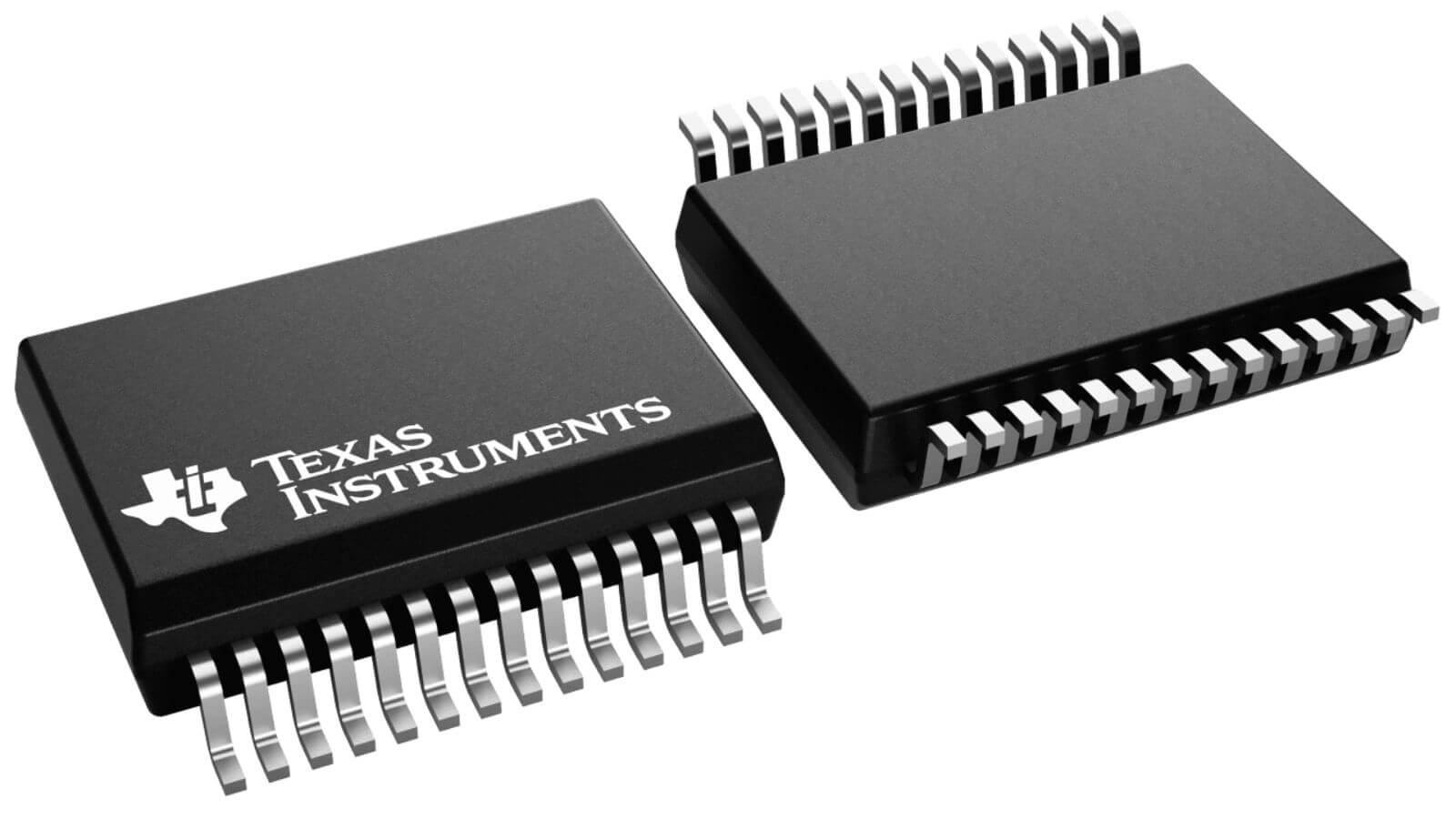

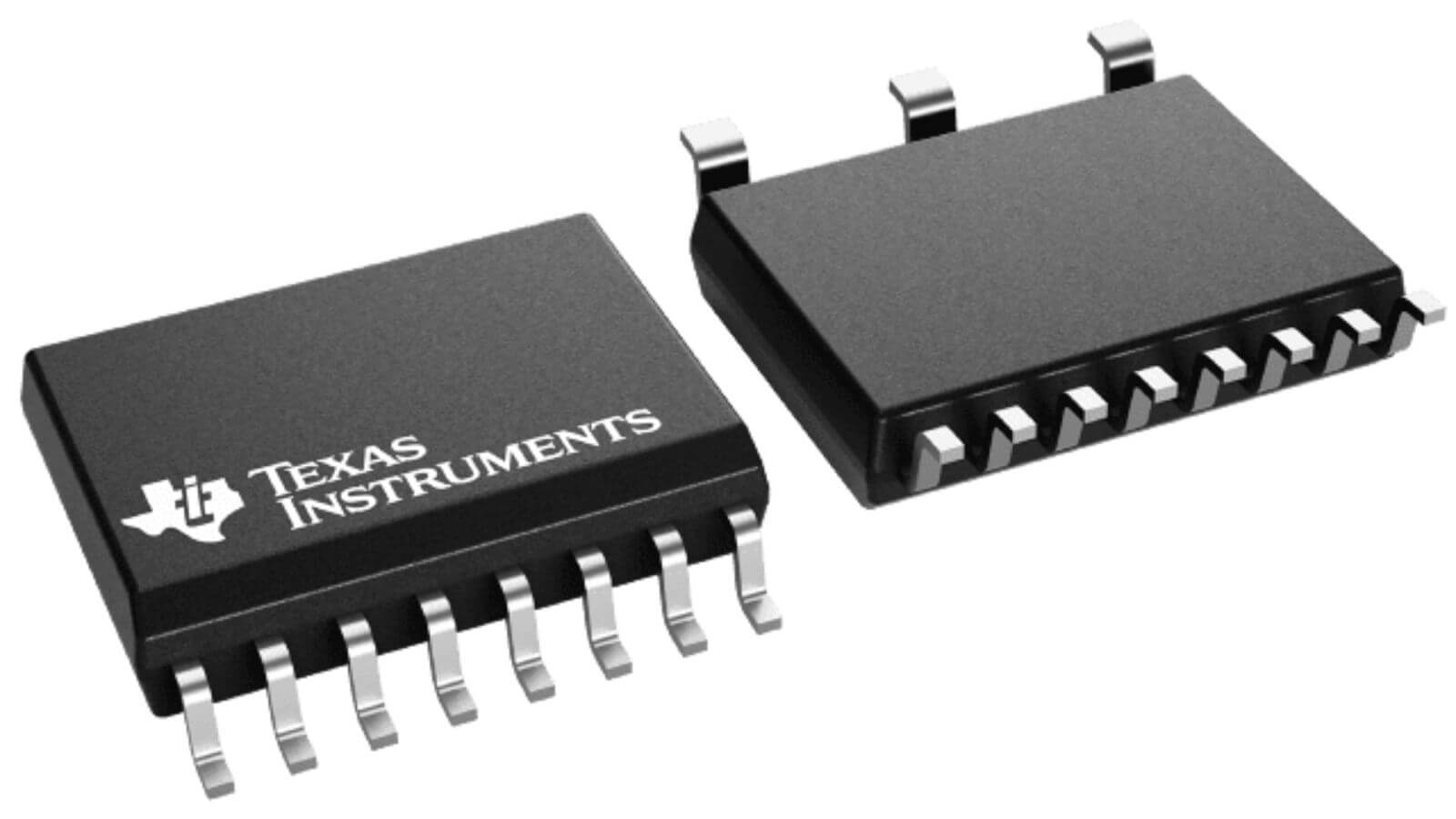

• Power Distribution & Sequencing: Managing power delivery to system rails through load switches and solid-state relays, providing controlled turn-on/turn-off sequencing, inrush current limiting, reverse polarity protection, and fault detection without mechanical relay wear or contact bounce.

Technical Principles

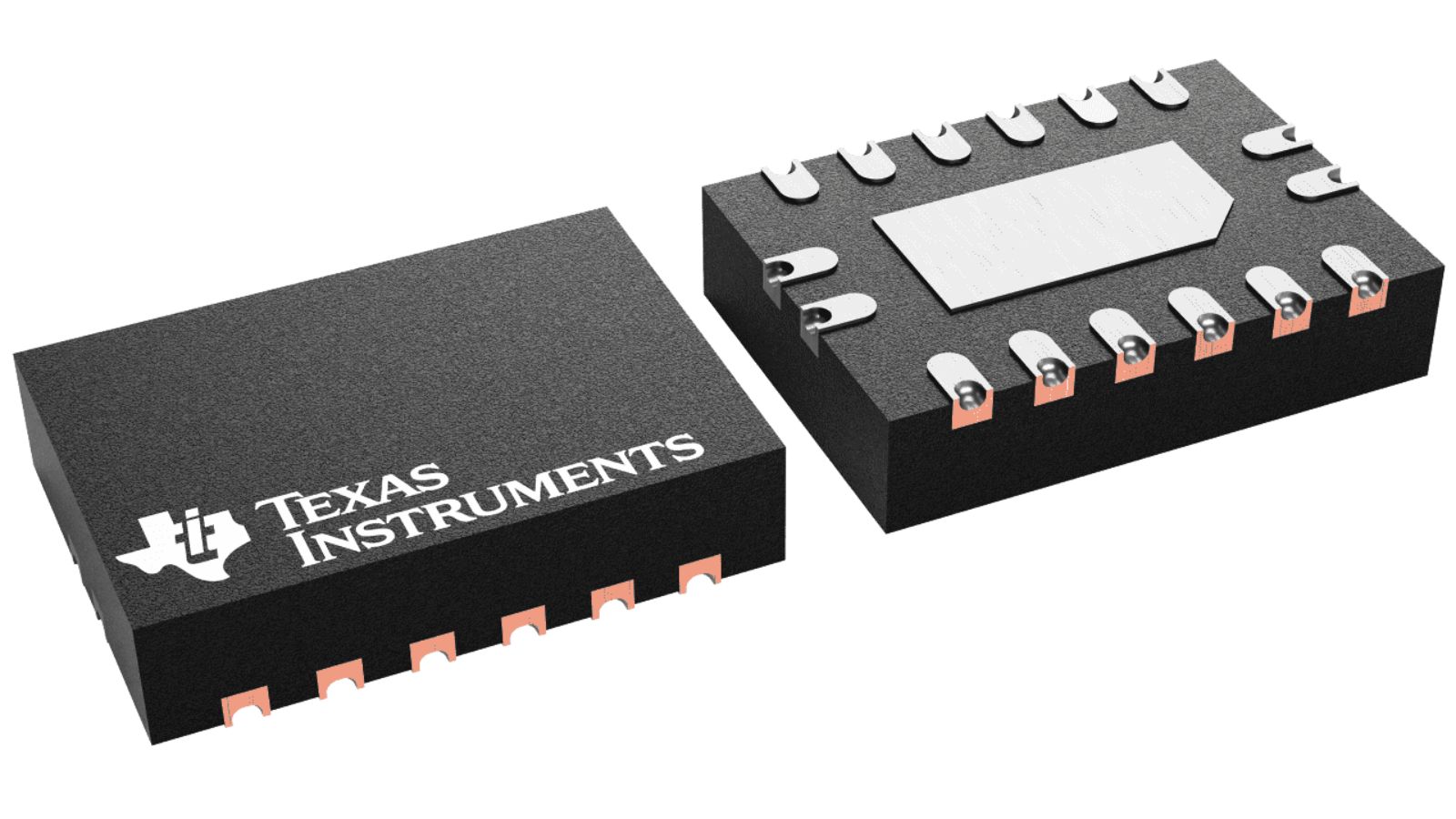

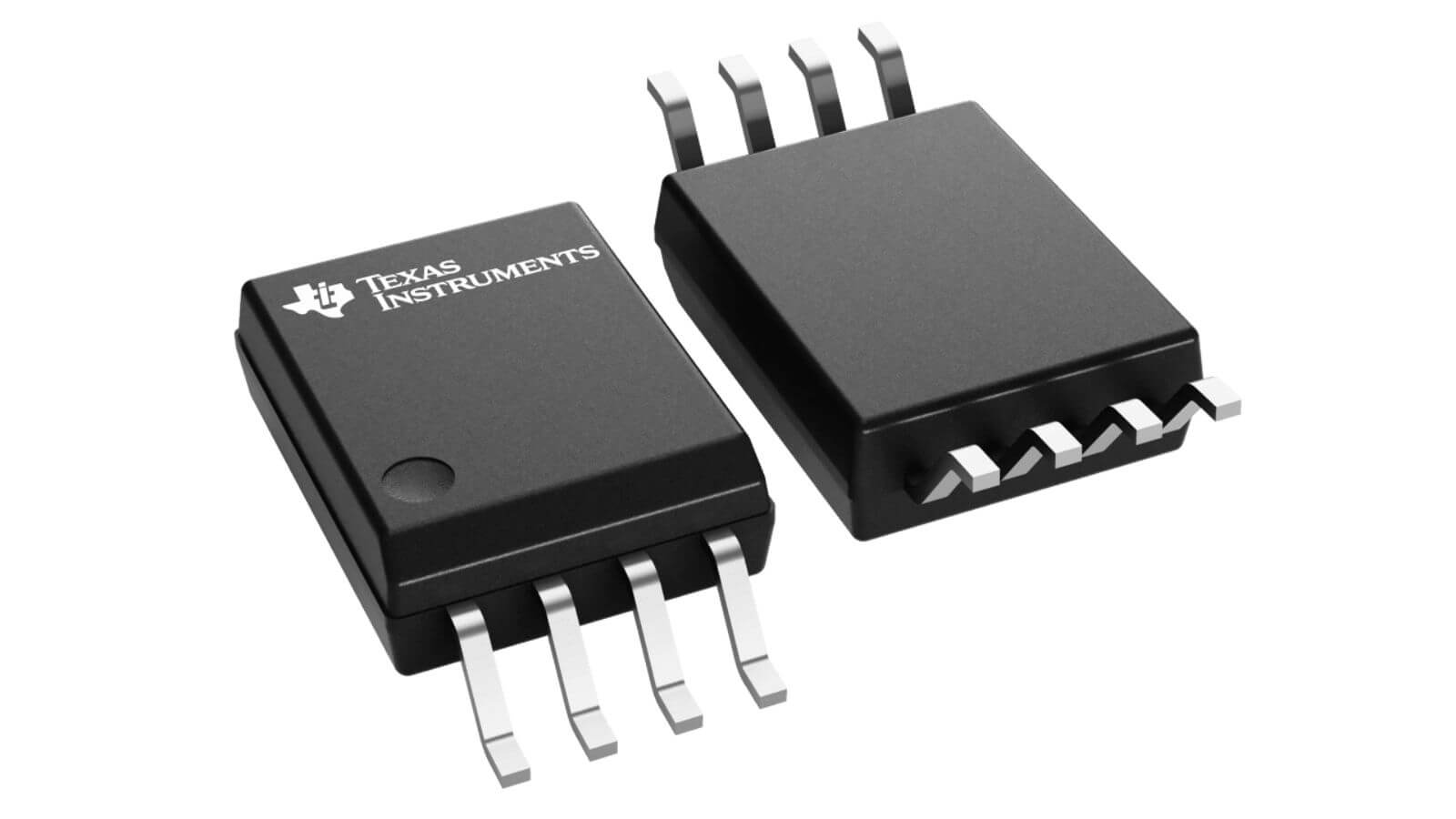

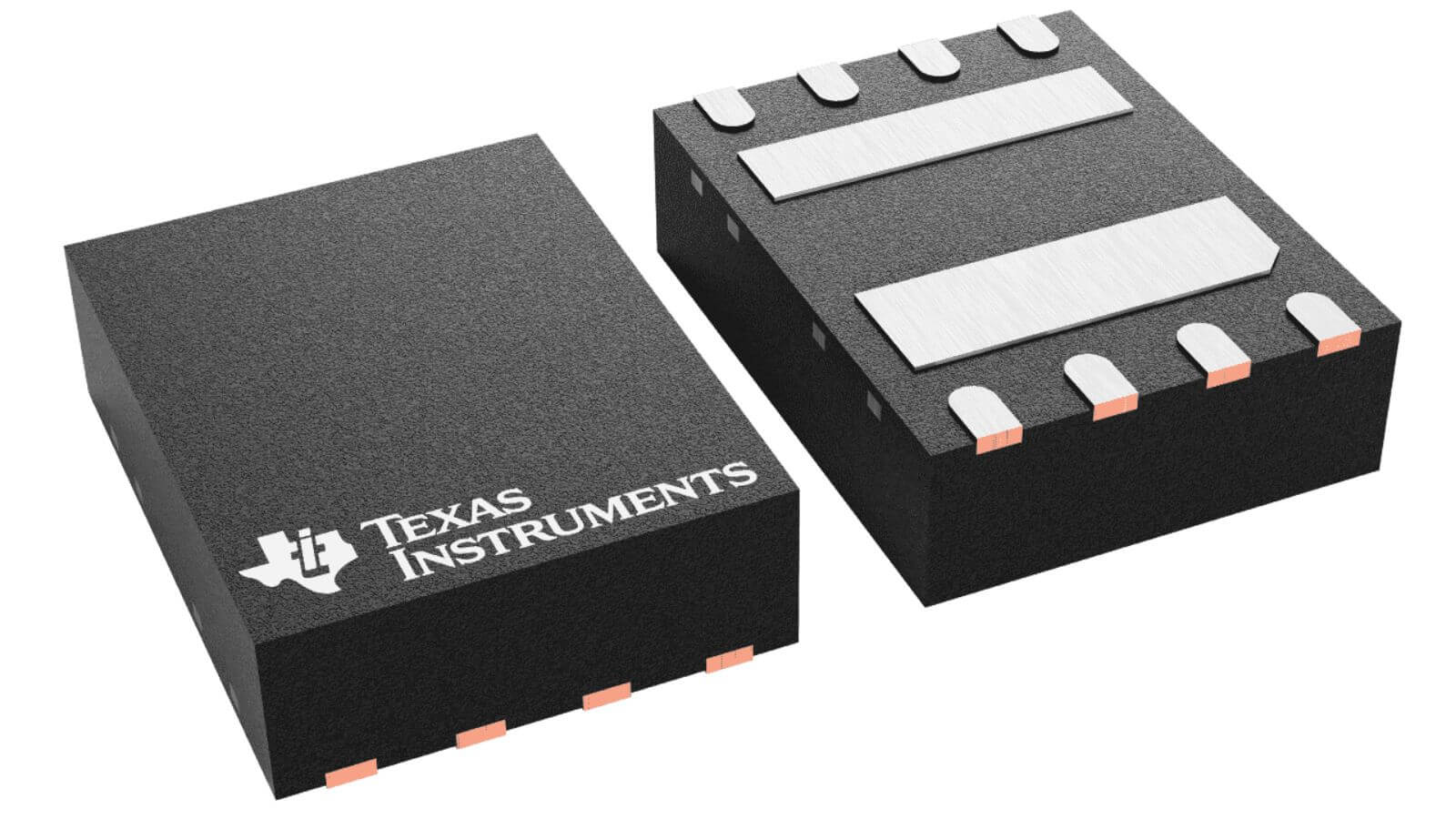

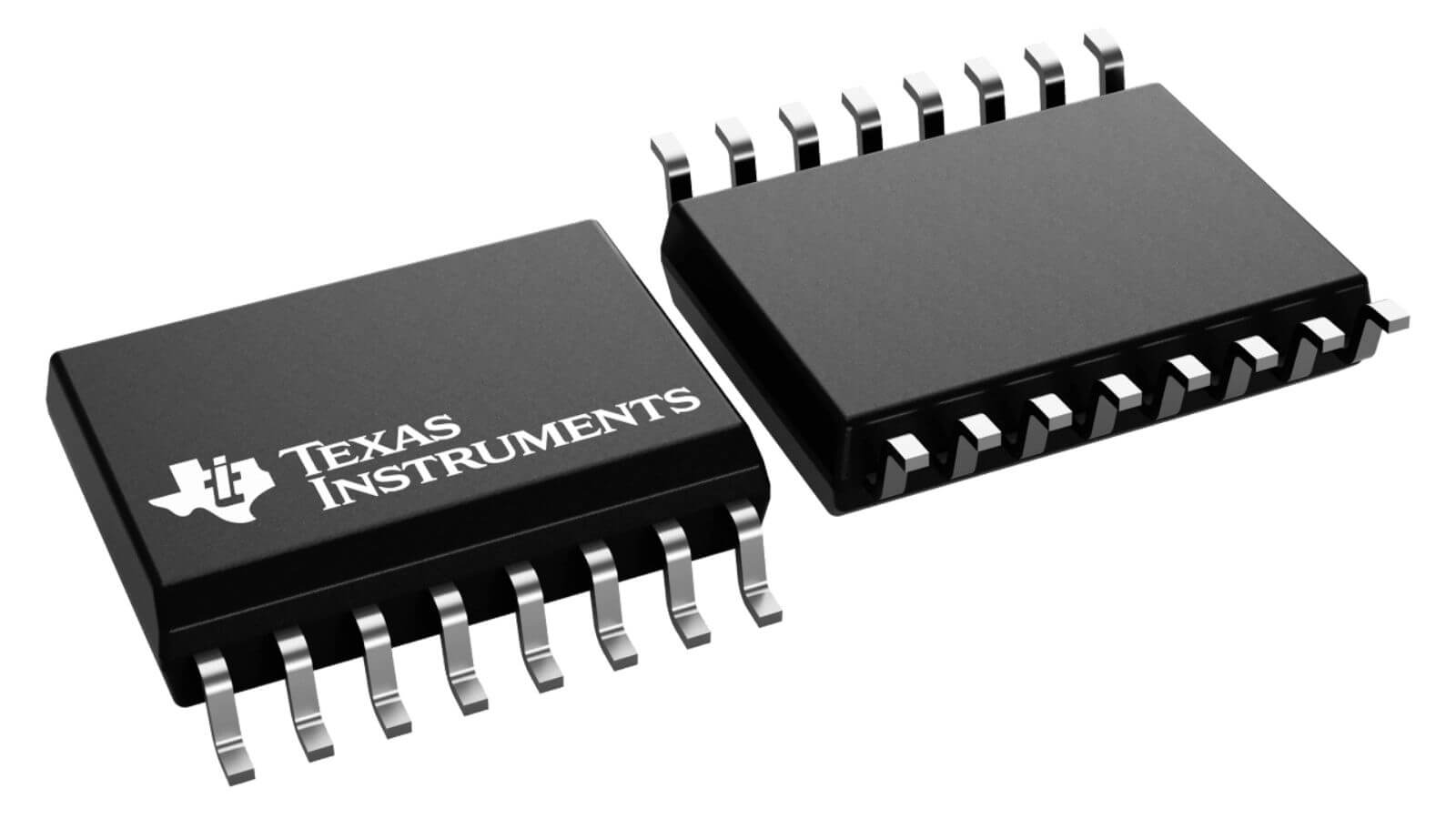

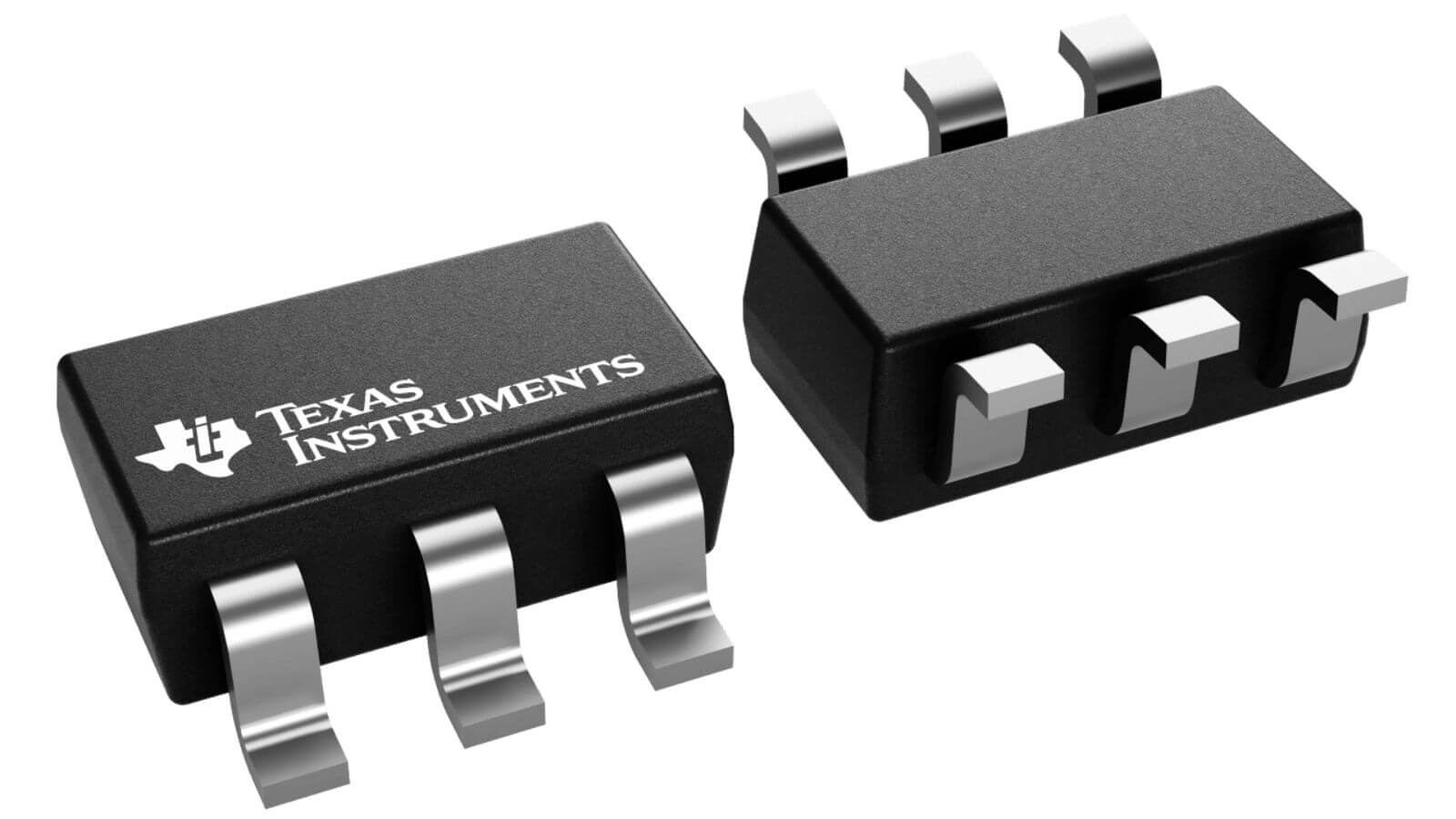

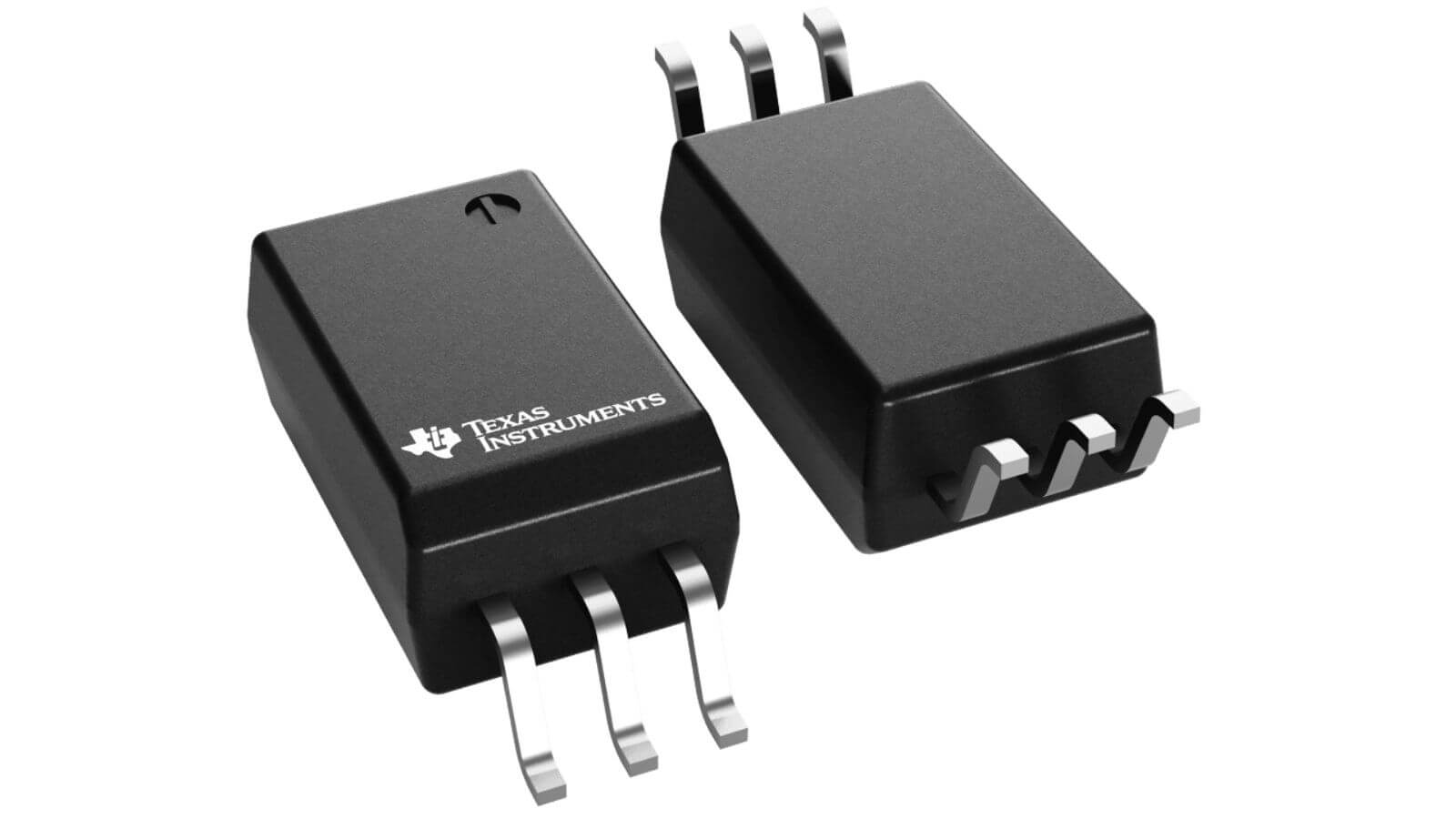

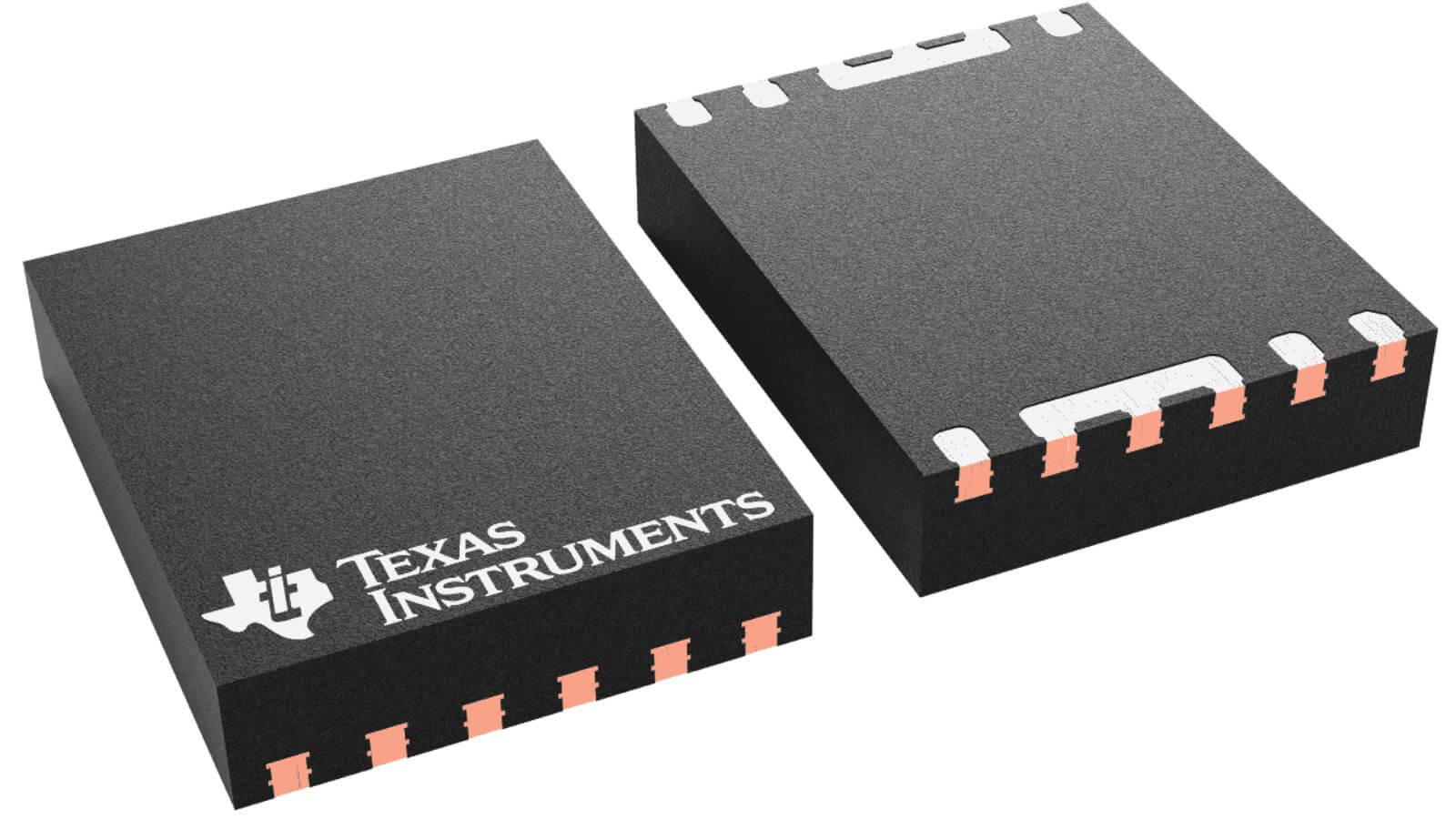

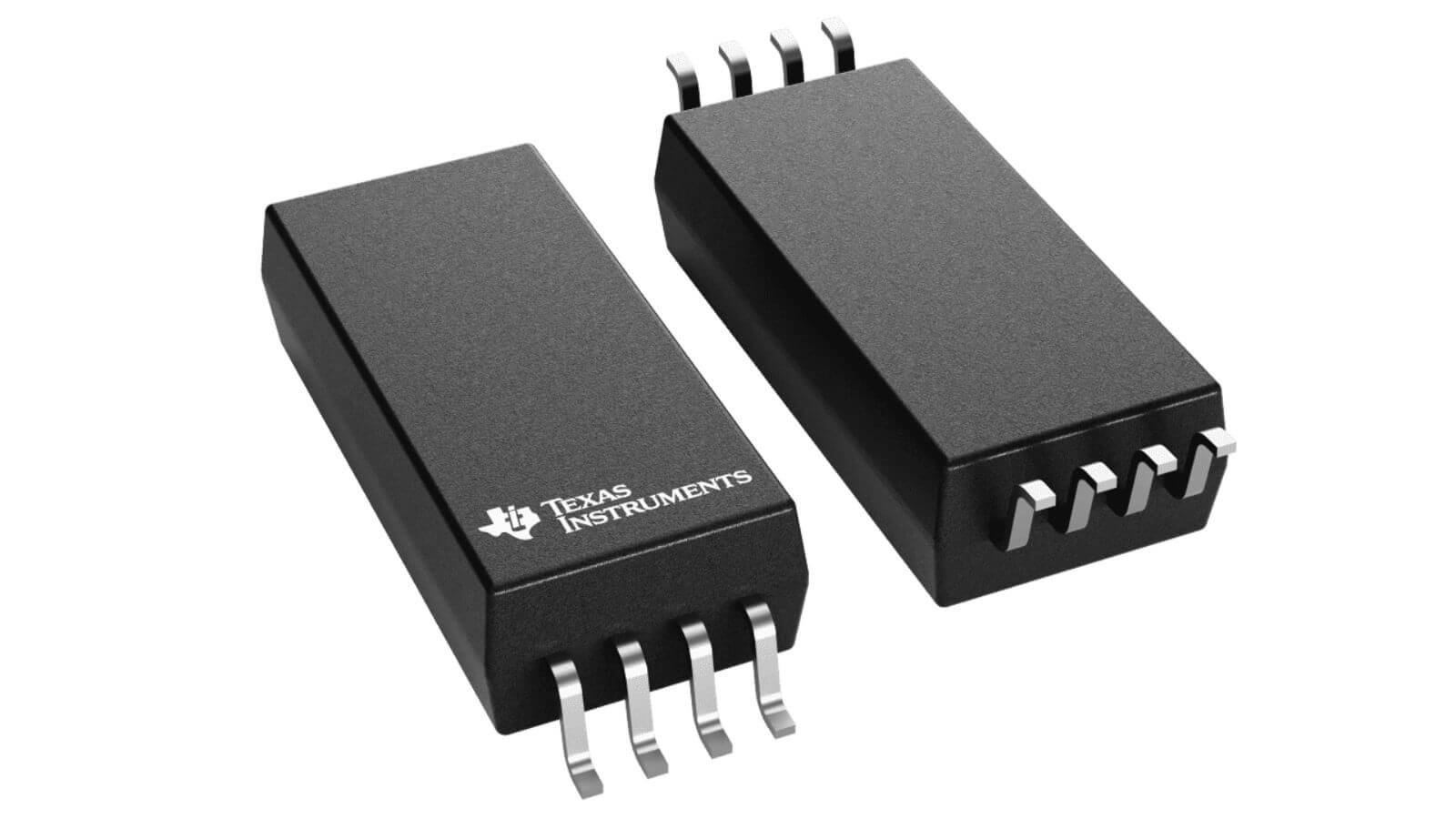

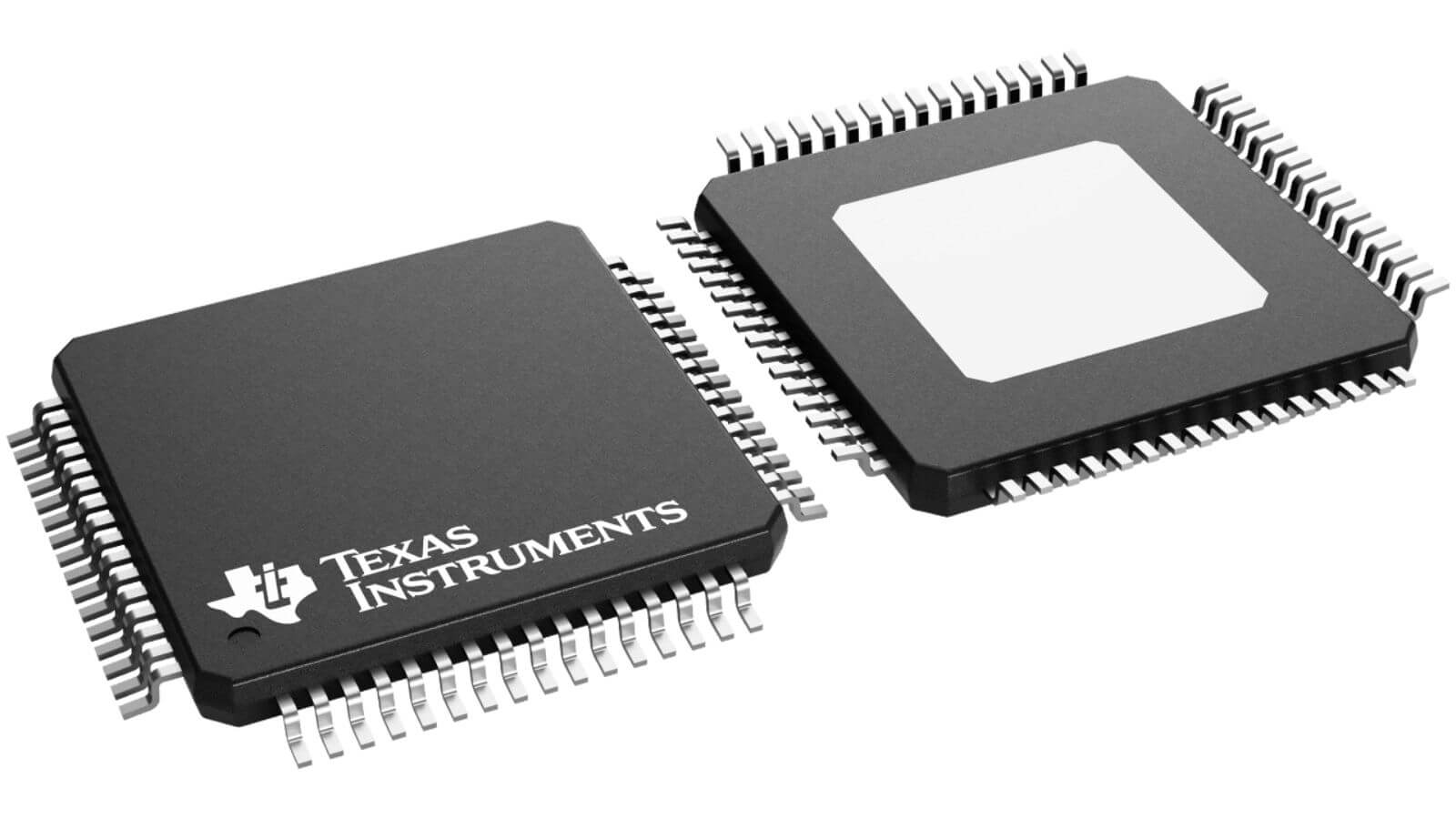

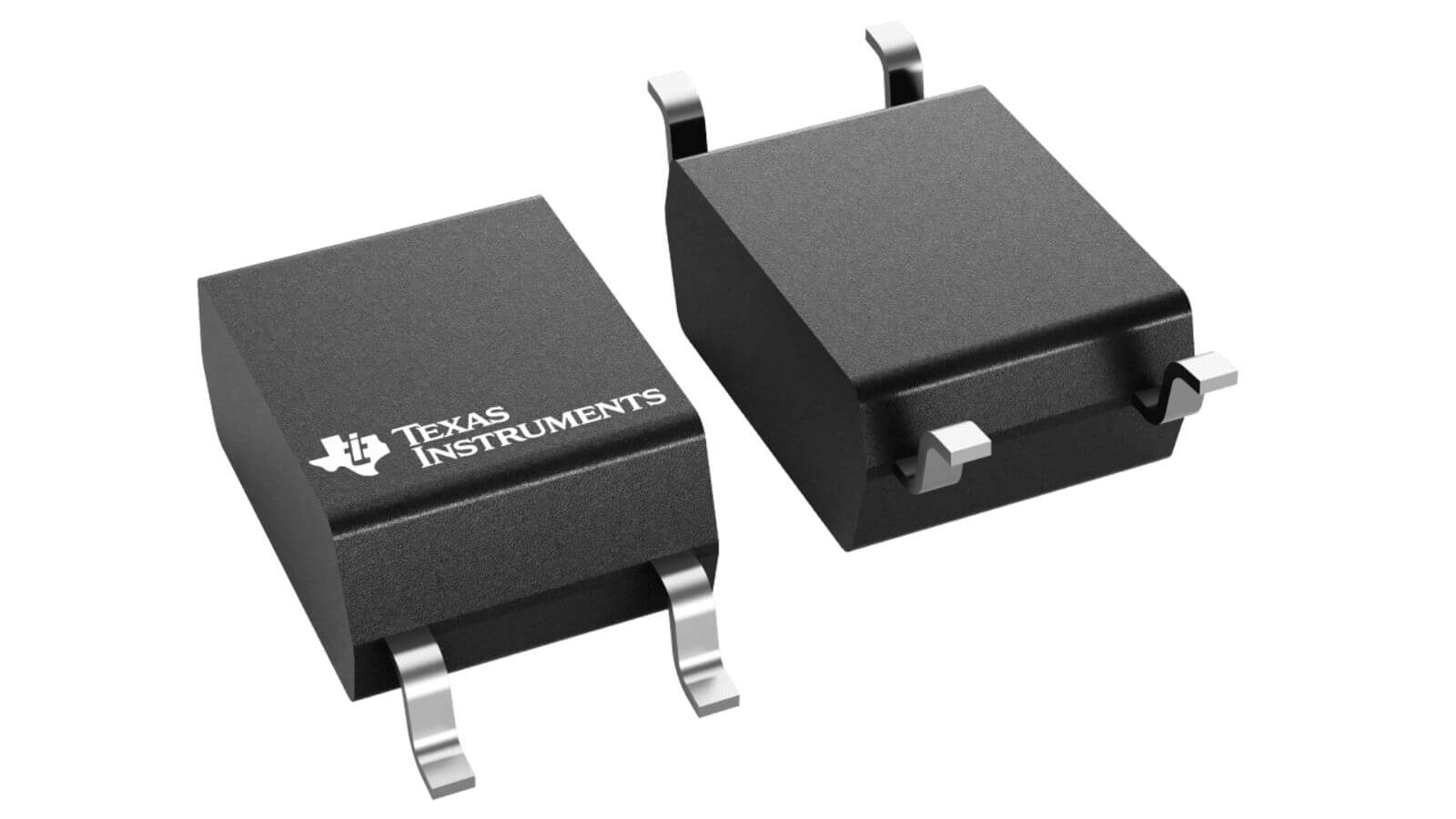

Isolation ICs employ capacitive coupling (through silicon dioxide or polymer dielectric layers), magnetic coupling (through micro-transformers), or optical coupling (through integrated LEDs and photodetectors) to transmit signals across an isolation barrier while blocking DC voltages and common-mode transients. Digital isolators achieve data rates up to 600Mbps using on-off keying or edge-detection modulation; isolated gate drivers deliver 2A+ peak output currents with <50ns propagation delay for switching IGBTs/MOSFETs in motor drives and inverters; isolated amplifiers and ADCs preserve ±0.1% measurement accuracy across 5kVrms+ barriers for current/voltage sensing in industrial and automotive applications.

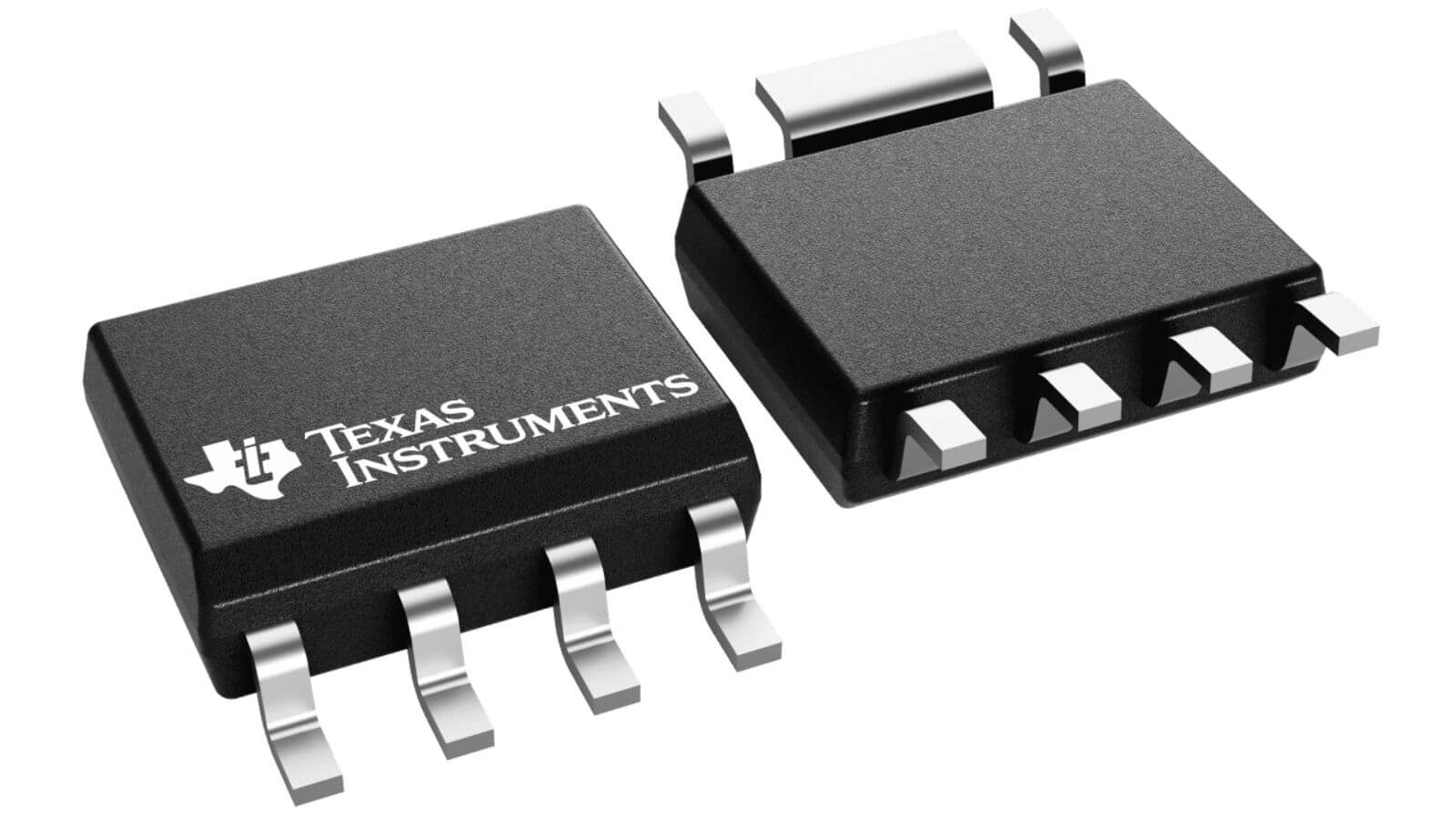

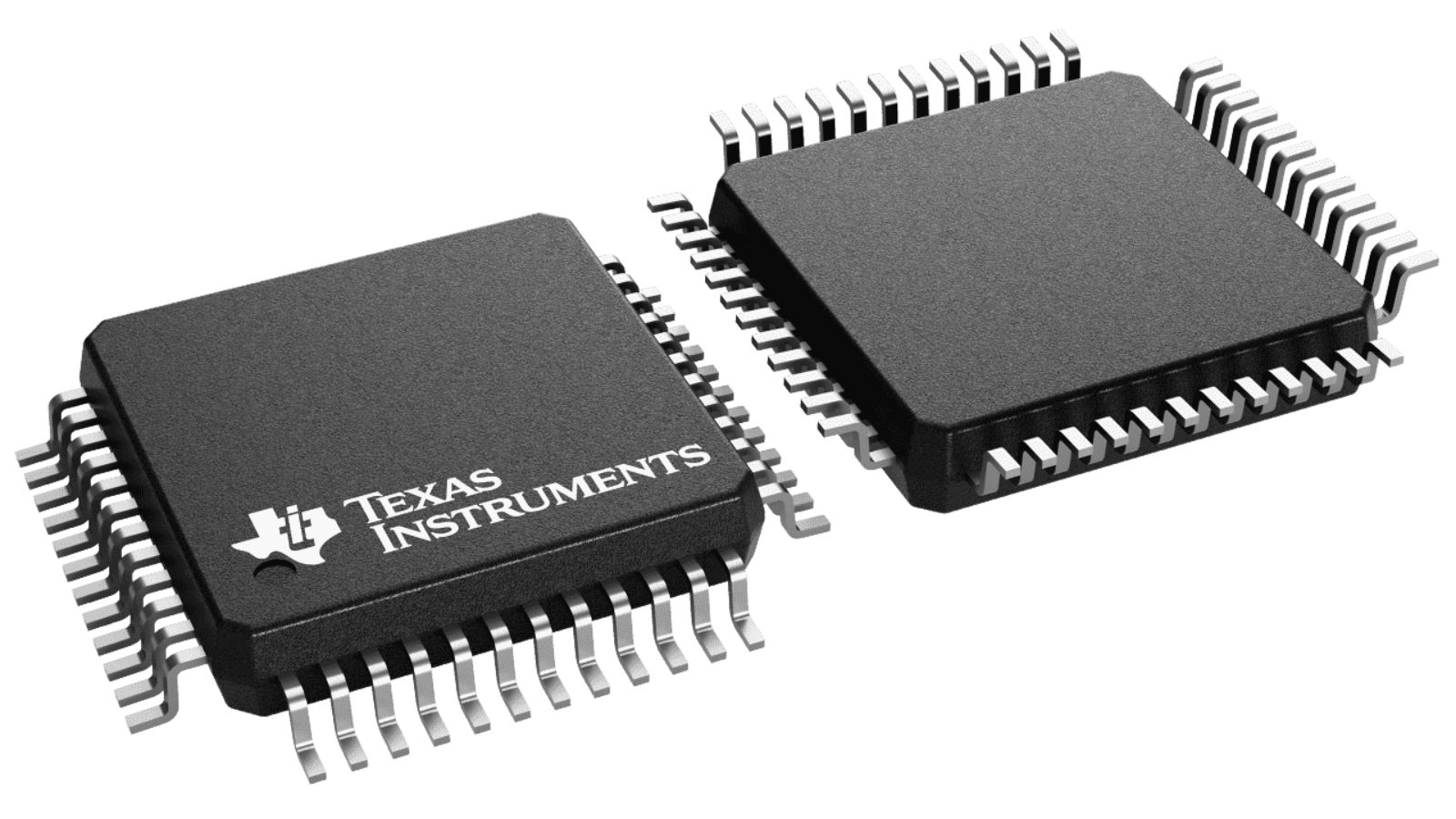

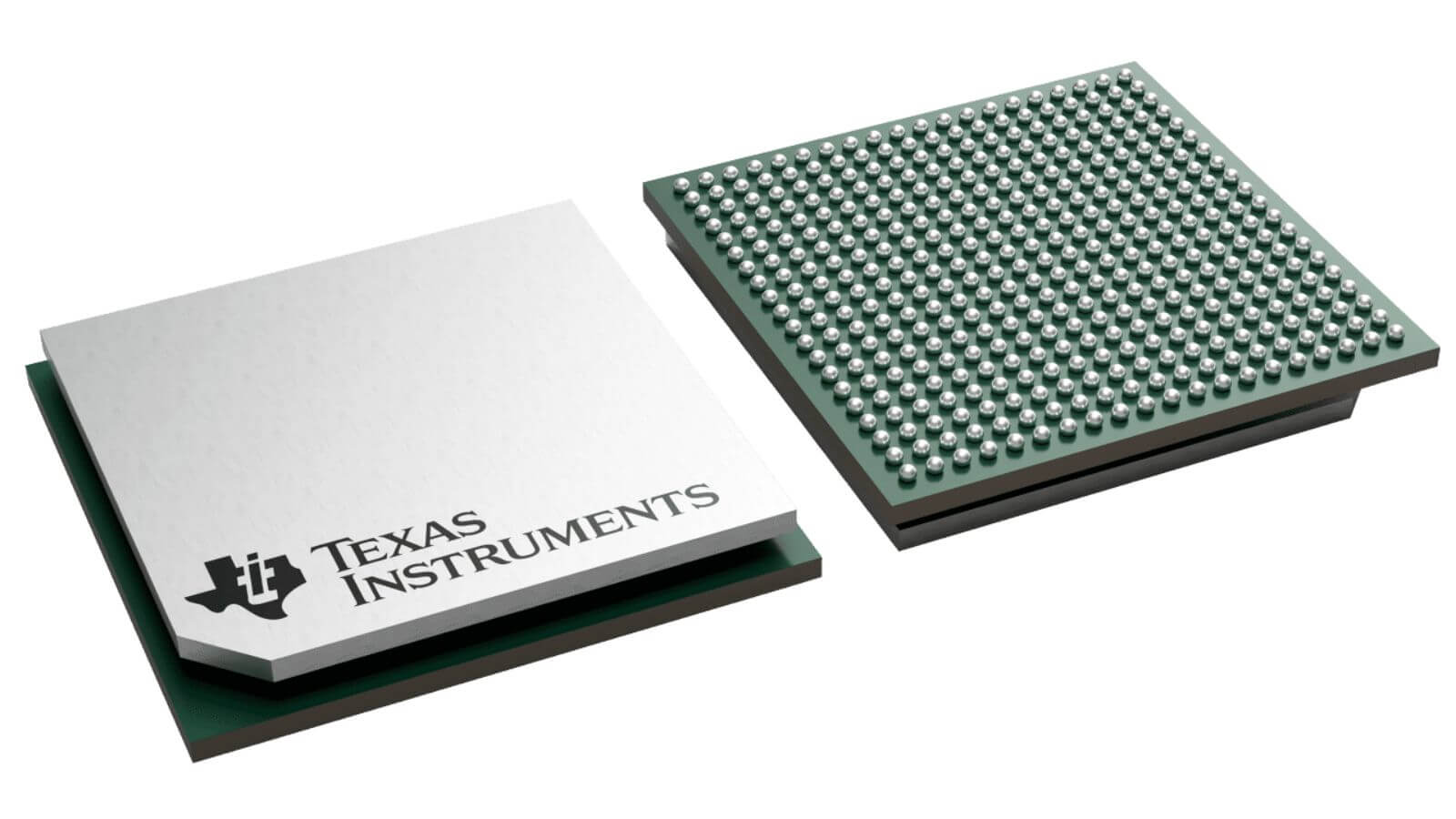

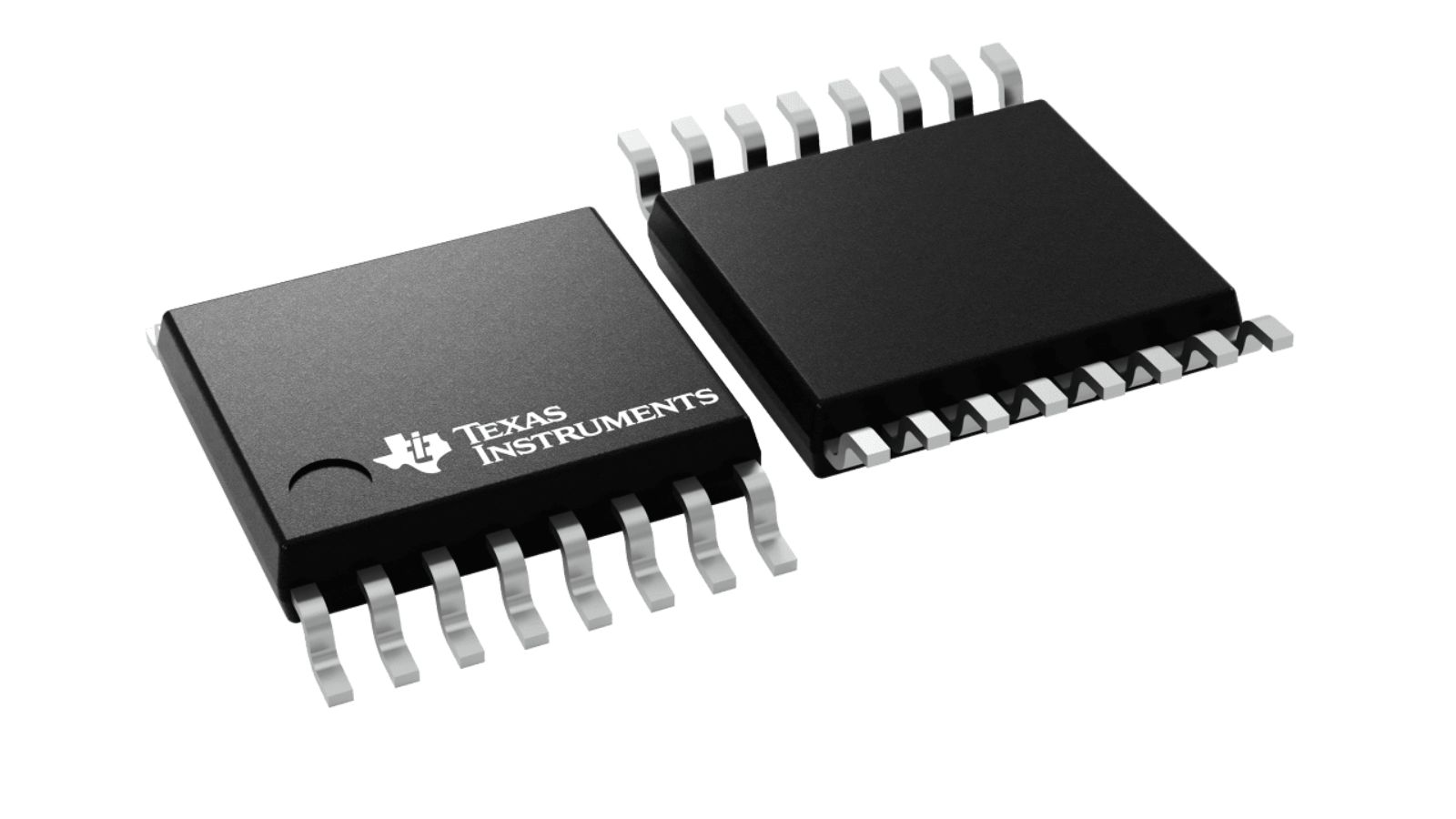

Analog switches and multiplexers use CMOS transmission gates (parallel NMOS/PMOS transistors) to create bidirectional low-resistance paths (Ron <5Ω) with rail-to-rail signal range capability. Advanced architectures employ charge injection cancellation, break-before-make switching to prevent short circuits, and integrated level shifters for mixed-voltage operation. Multiplexers stack switch matrices to create N:1 or M:N routing topologies; digital multiplexers use fast logic (74HC/LVC families) for address decoding and output buffering, achieving <5ns propagation delays for high-speed bus switching and data acquisition front-ends.
