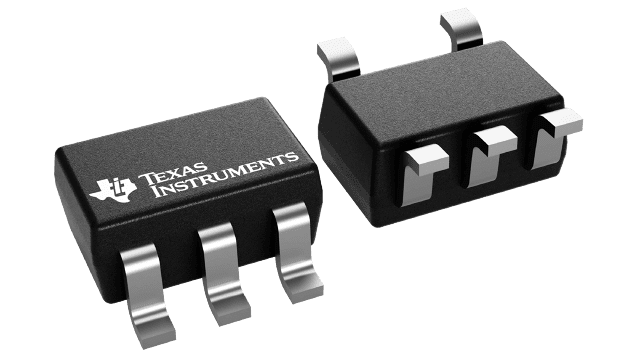

2N7001TQDCKRQ1, SC70-5, TI Automotive Voltage Level Translator Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | 2N7001TQDCKRQ1 |
| Product Status | ACTIVE / Production |
| Product Type | Automotive 1-Bit Dual-Supply Buffered Voltage Signal Translator |
| Number of Bits | 1 |
| Direction | Fixed-Direction |
| Translation Direction | Up or Down Translation |
| Topology | Push-Pull |
| Maximum Data Rate | 100 Mbps |
| VCCA Supply Voltage | 1.65 V to 3.6 V |
| VCCB Supply Voltage | 1.65 V to 3.6 V |
| Input Voltage Range | 1.65 V to 3.6 V |
| Output Voltage Range | 1.65 V to 3.6 V |
| Propagation Delay | 20 ns typical |
| Maximum Quiescent Current | 14 µA at 125°C |
| Supply Current | 14 µA maximum |
| VCC Isolation | Yes |
| VCC Isolation Threshold | If either VCCA or VCCB is below 100 mV, output B becomes high impedance |
| Ioff Partial Power-Down Protection | Yes |
| Logic Technology | 2N Technology Family |
| Input Type | Standard CMOS |
| Output Type | Push-Pull |
| Automotive Qualification | AEC-Q100 Qualified |
| Temperature Grade | Grade 1 |
| Human-Body Model ESD | 2000 V |
| Charged-Device Model ESD | 1000 V |
| Latch-Up Performance | Exceeds 100 mA per JESD 78, Class II |
| Operating Temperature | -40°C to +125°C |
| Package | SOT-SC70 (DCK), 5 Pins |
| Package Type | SC70-5 |
| Package Dimensions | 2.0 mm × 2.1 mm |
| Package Area | 4.2 mm² |
| Lead Finish / Ball Material | Sn |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 1,125,363 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | SOT-SC70 (DCK), 5-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for 2N7001TQDCKRQ1
- ✓ Competitive wholesale pricing for volume orders
- ✓ Automotive AEC-Q100 qualified voltage signal translator
- ✓ Supports voltage translation across 1.65 V to 3.6 V domains
- ✓ Supports data rates up to 100 Mbps
- ✓ Suitable for GPIO and mixed-voltage digital interfaces
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The 2N7001TQDCKRQ1 is an automotive-grade 1-bit dual-supply buffered voltage signal translator from Texas Instruments. The device is designed to translate a single unidirectional digital signal between two independent voltage domains.
Both VCCA and VCCB operate from 1.65 V to 3.6 V. VCCA determines the input threshold at the A input, while VCCB determines the output drive voltage at the B output. This structure allows the device to translate logic signals between different low-voltage power domains.
The 2N7001T-Q1 supports up to 100 Mbps across the full supply range and uses a push-pull output structure. Its typical propagation delay is 20 ns, making it suitable for high-speed GPIO and other digital control interfaces.
The device includes a VCC isolation function. When either VCCA or VCCB falls below 100 mV, the output port B enters a high-impedance state. Ioff circuitry also supports partial power-down operation by preventing excessive current from being drawn by or driven into powered-down signal paths.
As an AEC-Q100 qualified automotive device with Grade 1 operation from -40°C to +125°C, the 2N7001TQDCKRQ1 is designed for automotive electronic systems requiring reliable translation between different low-voltage logic domains.
- ✓ Automotive 1-bit dual-supply buffered voltage signal translator
- ✓ AEC-Q100 automotive qualified
- ✓ Grade 1 operating temperature from -40°C to +125°C
- ✓ Up and down translation across 1.65 V to 3.6 V
- ✓ Independent VCCA and VCCB supply rails
- ✓ Up to 100 Mbps data rate
- ✓ Push-pull output topology
- ✓ 20 ns typical propagation delay
- ✓ Maximum quiescent current of 14 µA at 125°C
- ✓ VCC isolation feature
- ✓ Output becomes high impedance when either supply is below 100 mV
- ✓ Ioff support for partial-power-down applications
- ✓ 2000-V human-body-model ESD protection
- ✓ 1000-V charged-device-model ESD protection
- ✓ Latch-up performance exceeding 100 mA per JESD 78
- ✓ Compact 5-pin SC70 package
- ✓ 2.0 mm × 2.1 mm package footprint
- ✓ 4.2 mm² package area
- ✓ Suitable for GPIO voltage translation
- ✓ Suitable for mixed-voltage digital interfaces
- ✓ Suitable for automotive electronic control systems
