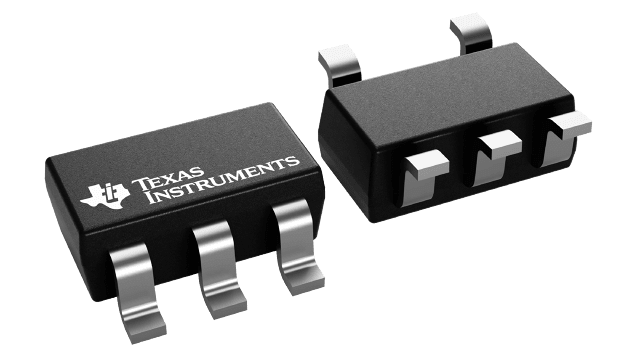

TLV73310PQDBVRQ1, SOT-23-5, TI 1.0V Automotive LDO Regulator Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | TLV73310PQDBVRQ1 |
| Product Status | ACTIVE / Production |
| Product Type | Automotive Low-Dropout (LDO) Linear Regulator |
| Output Voltage | 1.0 V fixed |
| Maximum Output Current | 300 mA |
| Input Voltage Range | 1.4 V to 5.5 V |
| Output Voltage Options | 1.0 V to 3.3 V fixed-output family |
| Output Accuracy | 1% typical; 1.4% maximum |
| Quiescent Current | 34 µA typical |
| Dropout Voltage | Very low dropout; 125 mV at 300 mA under 3.3 V output test conditions |
| PSRR at 1 kHz | 50 dB typical |
| PSRR at 100 kHz | 28 dB typical |
| Output Noise | 120 µVrms typical |
| Load Regulation | 25 mV maximum |
| Line Regulation | 1 mV typical |
| Minimum Effective Load Capacitance | 0 µF |
| Capacitor-Free Operation | Yes |
| Output Discharge | Active Output Discharge |
| Enable | Yes |
| EN High-Level Threshold | 0.9 V minimum |
| EN Low-Level Threshold | 0.35 V maximum |
| Overcurrent Protection | Foldback Overcurrent Protection |
| Short-Circuit Protection | Yes |
| Thermal Shutdown | Yes |
| Thermal Shutdown Temperature | 160°C typical |
| Automotive Qualification | AEC-Q100 Qualified |
| Temperature Grade | Grade 1 |
| Ambient Operating Temperature | -40°C to +125°C |
| Junction Temperature | -40°C to +150°C |
| Package | SOT-23 (DBV), 5 Pins |
| Package Type | SOT-23-5 |
| Package Dimensions | 2.9 mm × 1.6 mm |
| Package Area | 8.12 mm² |
| Lead Finish | NiPdAu / Sn |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Part Marking | 1P5F |
| Available Stock | 989,137 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | SOT-23 (DBV), 5-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for TLV73310PQDBVRQ1
- ✓ Competitive wholesale pricing for volume orders
- ✓ Automotive AEC-Q100 qualified 1.0 V LDO regulator
- ✓ Up to 300 mA output-current capability
- ✓ Low 34 µA typical quiescent current
- ✓ Capacitor-free architecture reduces external component requirements
- ✓ High PSRR performance for sensitive low-voltage power rails
- ✓ Compact SOT-23-5 package
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The TLV73310PQDBVRQ1 is a 1.0-V fixed-output automotive low-dropout linear regulator from Texas Instruments. It belongs to the TLV733P-Q1 family of 300-mA, low-quiescent-current LDOs designed for compact automotive and embedded power-management applications.
The device operates from a 1.4 V to 5.5 V input supply and provides a regulated 1.0 V output. It can source up to 300 mA while maintaining a typical quiescent current of only 34 µA. This combination is useful for low-voltage processor, sensor and embedded-control power rails.
The TLV733P-Q1 family uses a capacitor-free architecture that provides stable operation without an input or output capacitor. This can help reduce external component count and PCB area. Ceramic capacitors may also be used when required by the system design.
The family provides approximately 1% typical output accuracy and 1.4% maximum accuracy. It also offers high power-supply rejection, reaching 50 dB at 1 kHz, which helps suppress supply noise on sensitive downstream circuits.
The TLV73310PQDBVRQ1 includes foldback overcurrent protection, thermal shutdown and active output discharge. The enable input allows controlled power sequencing and shutdown, while the output discharge function helps quickly pull the regulated rail low after the device is disabled.
The device is AEC-Q100 qualified with Grade 1 ambient operation from -40°C to +125°C. Its compact 5-pin SOT-23 package measures approximately 2.9 mm × 1.6 mm, making it suitable for space-constrained automotive electronics.
- ✓ Fixed 1.0 V output voltage
- ✓ Up to 300 mA output current
- ✓ 1.4 V to 5.5 V input voltage range
- ✓ 1% typical output accuracy
- ✓ 1.4% maximum output accuracy
- ✓ 34 µA typical quiescent current
- ✓ Very low dropout voltage
- ✓ 50 dB typical PSRR at 1 kHz
- ✓ 28 dB typical PSRR at 100 kHz
- ✓ 120 µVrms typical output noise
- ✓ Capacitor-free stable operation
- ✓ Stable with ceramic output capacitors when required
- ✓ Active output discharge
- ✓ Enable control
- ✓ Foldback overcurrent protection
- ✓ Short-circuit protection
- ✓ Thermal shutdown protection
- ✓ AEC-Q100 qualified for automotive applications
- ✓ Grade 1 ambient operating temperature of -40°C to +125°C
- ✓ Junction temperature range to +150°C
- ✓ Compact 5-pin SOT-23 package
- ✓ Approximately 2.9 mm × 1.6 mm package footprint
- ✓ Suitable for automotive sensor power rails
- ✓ Suitable for microcontroller and processor power supplies
- ✓ Suitable for compact automotive electronic modules
