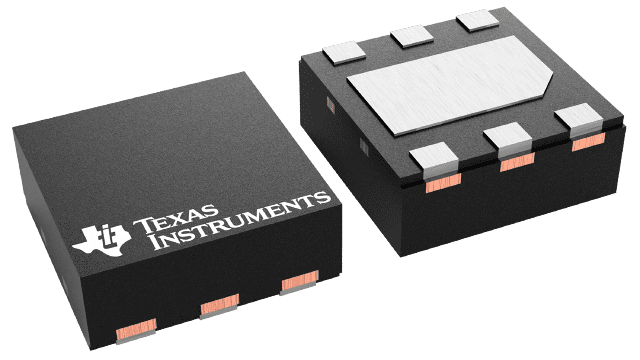

TPS74515PQWDRVRQ1, WSON-6, TI 1.5V Automotive LDO Regulator Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | TPS74515PQWDRVRQ1 |
| Product Status | ACTIVE / Production |
| Product Type | Automotive 500-mA Low-Dropout (LDO) Linear Regulator with Power-Good |
| Output Voltage | 1.5 V fixed |
| Maximum Output Current | 500 mA |
| Input Voltage Range | 1.5 V to 6.0 V |
| Output Voltage Range | Fixed options from 0.65 V to 5.0 V; this device is 1.5 V fixed |
| Output Accuracy | ±0.85% at 25°C; ±1.5% maximum over temperature |
| Quiescent Current | 25 µA typical |
| Shutdown Current | 1.5 µA typical |
| PSRR at 100 kHz | 45 dB |
| Output Noise | 53 µVrms |
| Dropout Voltage | 160 mV maximum at 500 mA with 3.3 V output test condition |
| Minimum Load Capacitance | 1 µF |
| Power-Good | Yes |
| Enable | Yes |
| Output Discharge | Active output discharge |
| Overcurrent Protection | Foldback current limit |
| Thermal Protection | Thermal shutdown |
| Undervoltage Lockout | Integrated UVLO |
| Automotive Qualification | AEC-Q100 Qualified |
| Temperature Grade | Grade 1 |
| Ambient Operating Temperature | -40°C to +125°C |
| Junction Temperature | -40°C to +150°C |
| Package | WSON (DRV), 6 Pins |
| Package Type | 2 mm × 2 mm Wettable-Flank WSON |
| Package Area | 4 mm² |
| Thermal Resistance | RθJA = 80.3°C/W for DRV 6-pin WSON |
| Lead Finish / Ball Material | Sn |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| Functional Safety | Functional Safety-Capable |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 1,011,360 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | WSON (DRV), 6-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for TPS74515PQWDRVRQ1
- ✓ Competitive wholesale pricing for volume orders
- ✓ Automotive AEC-Q100 qualified 1.5 V LDO regulator
- ✓ Up to 500 mA output-current capability
- ✓ Low 25 µA typical quiescent current
- ✓ High PSRR for noise-sensitive power rails
- ✓ Integrated Power-Good monitoring
- ✓ Compact 2 mm × 2 mm wettable-flank WSON-6 package
- ✓ Functional Safety-Capable device family
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The TPS74515PQWDRVRQ1 is a 1.5-V fixed-output automotive low-dropout linear regulator from Texas Instruments. It is part of the TPS745-Q1 family of 500-mA LDO regulators featuring low quiescent current, high power-supply rejection and Power-Good functionality.
The device operates from a 1.5 V to 6.0 V input supply and provides a regulated 1.5 V output with up to 500 mA of load current. Its typical quiescent current is only 25 µA, making it suitable for automotive electronics where power efficiency and standby consumption are important.
The TPS745-Q1 architecture provides high PSRR, reaching 45 dB at 100 kHz, while maintaining low dropout operation. The family specifies a maximum dropout voltage of 160 mV at 500 mA under the 3.3-V output test condition. The actual dropout voltage of a fixed-output variant depends on the operating conditions.
A Power-Good output monitors the regulated output and can be used with the enable input for sequencing multiple power supplies. The device also integrates active output discharge, foldback current limiting, thermal shutdown and undervoltage lockout.
The TPS74515PQWDRVRQ1 is stable with a 1-µF or larger effective capacitor. Its 2 mm × 2 mm wettable-flank WSON package helps minimize PCB area while supporting optical inspection of solder joints in automotive manufacturing.
As an AEC-Q100 qualified Grade 1 device, the TPS74515PQWDRVRQ1 is designed for automotive power-management applications including processor rails, sensor modules, communication electronics and other low-voltage subsystems.
- ✓ Fixed 1.5 V output voltage
- ✓ Up to 500 mA output current
- ✓ 1.5 V to 6.0 V input voltage range
- ✓ ±0.85% output accuracy at 25°C
- ✓ ±1.5% maximum output accuracy over temperature
- ✓ 25 µA typical quiescent current
- ✓ 1.5 µA typical shutdown current
- ✓ 45 dB PSRR at 100 kHz
- ✓ 53 µVrms typical output noise
- ✓ 160 mV maximum dropout voltage at 500 mA under TI specified 3.3-V-output test conditions
- ✓ Power-Good output for supply sequencing and monitoring
- ✓ Enable control
- ✓ Active output discharge
- ✓ Foldback overcurrent protection
- ✓ Integrated thermal shutdown
- ✓ Integrated undervoltage lockout
- ✓ Stable with a 1-µF or larger capacitor
- ✓ AEC-Q100 qualified for automotive applications
- ✓ Grade 1 operating temperature from -40°C to +125°C
- ✓ Junction temperature range to +150°C
- ✓ Functional Safety-Capable
- ✓ Wettable-flank WSON package
- ✓ Compact 2 mm × 2 mm WSON-6 package
- ✓ 4 mm² package footprint
- ✓ Suitable for automotive processor and sensor power rails
- ✓ Suitable for infotainment, communications and embedded automotive electronics
