DRV2604YZFR, DSBGA-9, TI Haptic Motor Driver Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | DRV2604YZFR |
| Product Status | ACTIVE / Production |
| Product Type | Haptic / Vibration Motor Driver |
| Haptic Actuator Type | ERM and LRA |
| Control Interface | I²C, PWM, Analog, Hardware Trigger |
| Supply Voltage | 2.5 V to 5.5 V |
| Output Voltage (Max) | 5.5 V |
| Shutdown Current | 1.75 µA typical |
| Standby Current | 1.9 µA typical |
| Quiescent Current | 0.6 mA typical |
| Startup Time | 0.7 ms typical from GO bit or external trigger |
| PWM Input Frequency | 10 kHz to 250 kHz |
| PWM Duty Cycle | 0% to 100% |
| PWM Output Frequency | 19.5 kHz to 21.5 kHz |
| LRA Frequency Range | 125 Hz to 300 Hz |
| Analog Input Range | 0 V to 1.8 V |
| Minimum Load Impedance | 8 Ω at VDD = 5.2 V |
| I²C Clock Frequency | Up to 400 kHz |
| REG Output | 1.84 V typical |
| Input Impedance | 100 kΩ at IN/TRIG to internal common-mode voltage |
| Output Impedance in Shutdown | 15 kΩ |
| Internal Waveform RAM | Supports pre-loading over 100 customized waveforms |
| Digital Logic | 1.8 V compatible, VDD-tolerant digital pins |
| Operating Temperature | -40°C to +85°C |

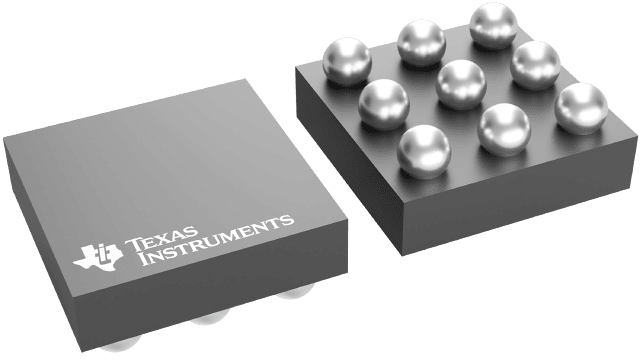

| Package | DSBGA (YZF), 9 Pins |
| Package Pitch | 0.5 mm |
| Package Size | 1.50 mm × 1.50 mm maximum body size |
| Lead / Ball Material | SnAgCu |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 1,322,894 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | DSBGA (YZF), 9-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for DRV2604YZFR
- ✓ Competitive wholesale pricing for volume orders
- ✓ Suitable for ERM and LRA haptic actuator applications
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The DRV2604YZFR is a flexible haptic driver from Texas Instruments designed to control both eccentric rotating mass (ERM) and linear resonant actuator (LRA) motors. It provides digital haptic control through a shared I²C-compatible bus while reducing the need for the host processor to generate dedicated PWM motor-drive signals.
The device integrates RAM for waveform storage and can store more than 100 customized waveforms. These waveforms can be played through the I²C interface or activated using the hardware trigger input. The real-time playback mode also allows the host processor to send waveforms directly through I²C.
The DRV2604 includes a Smart-Loop architecture with automatic overdrive and braking for ERM and LRA actuators, automatic LRA resonance tracking, actuator diagnostics and automatic level calibration. This feedback-based control helps provide consistent motor performance and simplified waveform control.
The device uses a trinary-modulated output stage for efficient actuator drive and supports optional PWM, analog and hardware trigger control modes. With a 2.5 V to 5.5 V supply range, 1.8-V-compatible digital inputs and a compact 9-ball DSBGA package, the DRV2604 is well suited to portable and touch-enabled products.
- ✓ Flexible haptic and vibration motor driver
- ✓ Supports both LRA and ERM actuators
- ✓ I²C-controlled digital playback engine
- ✓ Internal RAM for waveform storage
- ✓ Supports over 100 customized waveforms
- ✓ Real-time playback directly through I²C
- ✓ Smart-Loop architecture for feedback-based actuator control
- ✓ Automatic overdrive and braking for ERM and LRA
- ✓ Automatic resonance tracking for LRA
- ✓ Automatic actuator diagnostics for ERM and LRA
- ✓ Automatic level calibration for ERM and LRA
- ✓ Immersion TouchSense 3000 compatible
- ✓ Optional PWM input with 0% to 100% duty-cycle control
- ✓ Optional analog input control
- ✓ Optional hardware trigger input
- ✓ 2.5 V to 5.5 V supply voltage range
- ✓ Low 1.75 µA typical shutdown current
- ✓ Fast 0.7 ms typical startup time
- ✓ Constant acceleration over supply voltage
- ✓ 1.8-V-compatible, VDD-tolerant digital pins
- ✓ Efficient trinary-modulated output stage
- ✓ Compact 9-ball DSBGA package
- ✓ Suitable for mobile phones, tablets and touch-enabled haptic applications
