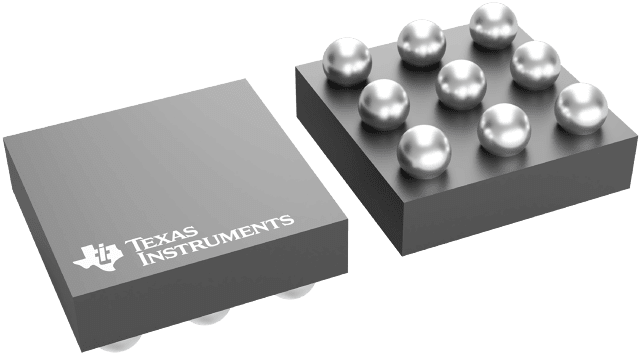

DRV2605YZFR, DSBGA-9, TI Haptic Motor Driver Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | DRV2605YZFR |
| Product Status | ACTIVE / Production |
| Product Type | Haptic / Vibration Motor Driver |
| Supported Actuators | ERM and LRA |
| Control Interface | I²C, PWM, Analog, Hardware Trigger |
| Supply Voltage | 2.5 V to 5.5 V |
| Output Voltage | Up to 5.5 V |
| Shutdown Current | 1.75 µA typical |
| Standby Current | 1.9 µA typical |
| Quiescent Current | 0.6 mA typical |
| Startup Time | 0.7 ms typical |
| PWM Input Frequency | 10 kHz to 250 kHz |
| PWM Output Frequency | 19.5 kHz to 21.5 kHz |
| LRA Frequency Range | 125 Hz to 300 Hz |
| Load Impedance | 8 Ω minimum at VDD = 5.2 V |
| Analog Input Range | 0 V to 1.8 V |
| Digital Logic | 1.8 V compatible, VDD tolerant digital pins |
| Operating Temperature | -40°C to +85°C |
| Package | DSBGA (YZF), 9 Pins |
| Package Size | 1.75 mm × 1.75 mm |
| Package Type | 9-Ball WCSP / DSBGA |
| Ball Material | SnAgCu |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 3,193,064 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | DSBGA (YZF), 9-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for DRV2605YZFR
- ✓ Competitive wholesale pricing for volume orders
- ✓ Suitable for ERM and LRA haptic actuator applications
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The DRV2605YZFR is a haptic driver from Texas Instruments designed to provide flexible control of both eccentric rotating mass (ERM) and linear resonant actuator (LRA) motors. The device combines actuator control, feedback processing and haptic waveform playback into a compact 9-ball DSBGA package.
The DRV2605 supports an I²C-controlled digital playback engine and can also accept PWM, analog or hardware-trigger inputs. Real-time playback allows a host processor to send waveforms directly through the I²C interface, reducing the need for the host processor to generate dedicated PWM drive signals.
Its Smart Loop architecture provides automatic resonance tracking for LRA actuators, together with automatic overdrive, braking, actuator diagnostics and level calibration. These functions help improve startup, braking, acceleration consistency and overall actuator performance.
The device also includes a licensed Immersion TouchSense 2200 effects library with more than 100 haptic effects and audio-to-vibe functionality. The compact DSBGA package and low component count make the DRV2605 suitable for portable, wearable and touch-enabled devices.
- ✓ Flexible haptic and vibration motor driver
- ✓ Supports both LRA and ERM actuators
- ✓ I²C-controlled digital playback engine
- ✓ Real-time waveform playback through I²C
- ✓ Smart Loop architecture for closed-loop actuator control
- ✓ Automatic LRA resonance tracking
- ✓ Automatic ERM/LRA overdrive and braking
- ✓ Automatic actuator diagnostics and level calibration
- ✓ Integrated Immersion TouchSense 2200 effects library
- ✓ More than 100 licensed haptic effects
- ✓ Audio-to-vibe functionality
- ✓ Optional PWM input with 0% to 100% duty-cycle control
- ✓ Optional analog input and hardware trigger control
- ✓ 2.5 V to 5.5 V supply voltage range
- ✓ Low 1.75 µA typical shutdown current
- ✓ Fast 0.7 ms typical startup time
- ✓ 1.8 V-compatible, VDD-tolerant digital pins
- ✓ Efficient trinary-modulated output stage
- ✓ Compact 9-ball DSBGA package
- ✓ Ideal for smartphones, tablets, wearables, touch interfaces, remote controls and human-machine interfaces
