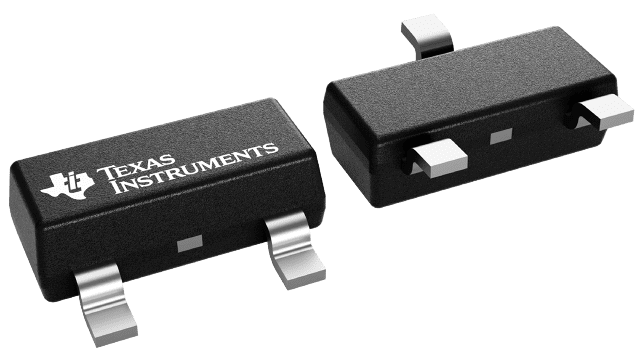

ESD2CANFD24DBZRQ1, SOT-23-3, TI Automotive CAN-FD ESD Protection Diode Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | ESD2CANFD24DBZRQ1 |
| Product Status | ACTIVE / Production |
| Product Type | Automotive Dual-Channel ESD Protection Diode |
| Application Interface | CAN, CAN-FD, GPIO |
| Number of Channels | 2 |
| Working Voltage (VRWM) | 24 V |
| Polarity | Bidirectional |
| Breakdown Voltage | 25.5 V minimum |
| Clamping Voltage | 36 V |
| Dynamic Resistance | 0.45 Ω typical |
| I/O Capacitance | 2.5 pF typical |
| Peak Pulse Power | 133 W maximum at 8/20 µs |
| IEC 61000-4-5 Surge Current | 3.5 A |
| IEC 61000-4-2 Contact ESD | Up to ±25 kV |
| IEC 61000-4-2 Air-Gap ESD | Up to ±25 kV |
| ISO 10605 Contact ESD | Up to ±27 kV |
| ISO 10605 Air-Gap ESD | Up to ±27 kV |
| Maximum I/O Leakage Current | 50 nA |
| Operating Temperature | -55°C to +150°C |
| Automotive Qualification | AEC-Q101 Qualified |
| Package | SOT-23 (DBZ), 3 Pins |
| Package Dimensions | 2.92 mm × 2.37 mm |
| Package Area | 6.9204 mm² |
| Lead Finish / Ball Material | NiPdAu |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 9,657,745 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | SOT-23 (DBZ), 3-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for ESD2CANFD24DBZRQ1
- ✓ Competitive wholesale pricing for volume orders
- ✓ Suitable for automotive CAN and CAN-FD protection applications
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The ESD2CANFD24DBZRQ1 is an automotive-grade, dual-channel bidirectional ESD protection diode from Texas Instruments. It is designed specifically to protect in-vehicle network interfaces such as CAN and CAN-FD against electrostatic discharge and other transient events.
The device supports a 24 V working voltage and provides two protected channels in a compact SOT-23-3 package. With a typical I/O capacitance of 2.5 pF and low dynamic resistance of 0.45 Ω, it is designed to maintain signal integrity while protecting CANH and CANL communication lines.
ESD2CANFD24-Q1 devices are designed to withstand high-energy electrostatic events. The device provides IEC 61000-4-2 Level 4 ESD protection and supports ISO 10605 automotive ESD testing, while also being tested in compliance with IEC 61000-4-5 surge requirements.
The ESD2CANFD24DBZRQ1 is AEC-Q101 qualified and supports an operating temperature range from -55°C to +150°C. Its compact standard SOT-23 footprint allows the protection device to be placed close to CAN transceivers and connectors, helping reduce the exposed PCB trace length and improve transient protection.
- ✓ Automotive dual-channel bidirectional ESD protection diode
- ✓ Designed for CAN and CAN-FD interfaces
- ✓ 24 V working voltage
- ✓ 25.5 V minimum breakdown voltage
- ✓ 36 V clamping voltage
- ✓ 0.45 Ω typical dynamic resistance
- ✓ 2.5 pF typical I/O capacitance
- ✓ 133 W maximum peak pulse power at 8/20 µs
- ✓ 3.5 A IEC 61000-4-5 surge current rating
- ✓ Up to ±25 kV IEC 61000-4-2 contact discharge protection
- ✓ Up to ±25 kV IEC 61000-4-2 air-gap discharge protection
- ✓ Up to ±27 kV ISO 10605 automotive ESD protection
- ✓ Maximum 50 nA I/O leakage current
- ✓ Low capacitance helps preserve CAN-FD signal integrity
- ✓ AEC-Q101 qualified for automotive applications
- ✓ -55°C to +150°C operating temperature range
- ✓ Compact SOT-23-3 package
- ✓ Standard footprint for convenient PCB implementation
- ✓ Suitable for CAN, CAN-FD, CAN SiC and CAN-XL protection designs
- ✓ Suitable for automotive in-vehicle networking and communication systems
