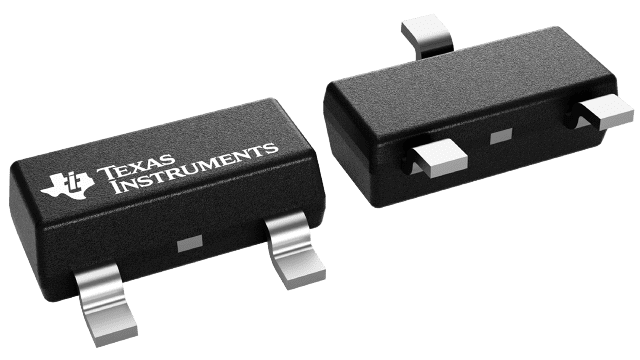

ESD2CANFD24DBZR, SOT-23-3, TI CAN-FD ESD Protection Diode Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | ESD2CANFD24DBZR |
| Product Status | ACTIVE / Production |
| Product Type | Dual-Channel ESD Protection Diode |
| Interface Type | CAN, CAN-FD, GPIO |
| Number of Channels | 2 |
| Protection Direction | Bidirectional |
| Working Voltage (VRWM) | 24 V |
| Breakdown Voltage | 25.5 V minimum |
| Clamping Voltage | 36 V maximum |
| Dynamic Resistance | 0.45 Ω typical |
| I/O Capacitance | 2.5 pF typical |
| Peak Pulse Power | 133 W maximum at 8/20 µs |
| IEC 61000-4-2 Contact ESD | ±25 kV |
| IEC 61000-4-2 Air-Gap ESD | ±25 kV |
| IEC 61000-4-5 Surge Current | 3.5 A |
| I/O Leakage Current | 50 nA maximum |
| CAN Data Rate Support | Up to 10 Mbps for CAN-FD, CAN SiC and CAN-XL applications |
| Operating Temperature | -50°C to +150°C |
| Package | SOT-23 (DBZ), 3 Pins |
| Package Dimensions | 2.92 mm × 2.37 mm |
| Package Area | 6.9204 mm² |
| Lead Finish / Ball Material | NiPdAu |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 7,229,545 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | SOT-23 (DBZ), 3-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for ESD2CANFD24DBZR
- ✓ Competitive wholesale pricing for volume orders
- ✓ Suitable for CAN and CAN-FD interface protection
- ✓ Low 2.5 pF typical I/O capacitance for high-speed communication
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The ESD2CANFD24DBZR is a dual-channel bidirectional ESD protection diode from Texas Instruments designed for Controller Area Network (CAN) and CAN-FD interface protection. The device protects two CAN bus lines, such as CANH and CANL, against electrostatic discharge and other transient events.
The device features a 24 V working voltage, low dynamic resistance and a low 2.5 pF typical I/O capacitance. This combination helps provide transient protection while minimizing the additional capacitive loading placed on high-speed communication lines.
The ESD2CANFD24 provides IEC 61000-4-2 Level 4 ESD protection with ±25 kV contact discharge and ±25 kV air-gap discharge. It is also tested in compliance with IEC 61000-4-5 surge requirements and provides a typical dynamic resistance of 0.45 Ω with a maximum clamping voltage of 36 V.
With its compact 3-pin SOT-23 package and standard footprint, the ESD2CANFD24DBZR can be positioned close to a CAN transceiver or connector to help minimize the exposed PCB trace length. The device is suitable for CAN, CAN-FD, CAN SiC and CAN-XL applications supporting data rates up to 10 Mbps.
- ✓ Dual-channel bidirectional ESD protection
- ✓ Designed for CAN and CAN-FD interfaces
- ✓ 24 V working voltage
- ✓ 25.5 V minimum breakdown voltage
- ✓ 36 V maximum clamping voltage
- ✓ 0.45 Ω typical dynamic resistance
- ✓ 2.5 pF typical I/O capacitance
- ✓ 133 W maximum peak pulse power at 8/20 µs
- ✓ ±25 kV IEC 61000-4-2 contact discharge protection
- ✓ ±25 kV IEC 61000-4-2 air-gap discharge protection
- ✓ 3.5 A IEC 61000-4-5 surge current capability
- ✓ Maximum 50 nA I/O leakage current
- ✓ Low capacitance suitable for high-speed CAN-FD communication
- ✓ Supports CAN, CAN-FD, CAN SiC and CAN-XL applications
- ✓ Supports communication applications up to 10 Mbps
- ✓ Compact and standard SOT-23-3 package
- ✓ Leaded package suitable for automatic optical inspection
- ✓ -50°C to +150°C operating temperature range
- ✓ Suitable for automotive in-vehicle networks and industrial CAN communication systems
