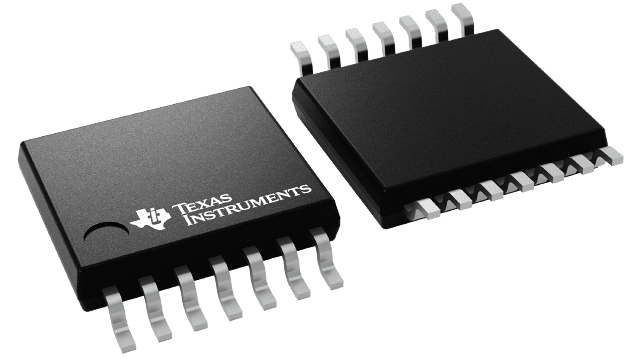

TDC7200PWR, TSSOP-14, TI Time-to-Digital Converter Wholesale
Description
Reviews
Key Specifications
| Manufacturer | Texas Instruments (TI) |
| Part Number | TDC7200PWR |
| Product Status | ACTIVE |
| Product Type | Time-to-Digital Converter (TDC) |
| Input Channels | 1 |
| Resolution | 55 ps |
| Standard Deviation | 35 ps |
| Measurement Range Mode 1 | 12 ns to 500 ns |
| Measurement Range Mode 2 | 250 ns to 8 ms |
| STOP Signals | Up to 5 STOP signals |
| Low Power Consumption | 0.5 µA at 2 SPS |
| Supply Voltage | 2.0 V to 3.6 V |
| Interface | SPI host interface |
| Package | TSSOP (PW), 14 pins |
| Package Dimensions | 5 mm × 6.4 mm |
| Package Area | 32 mm² |
| Operating Temperature | -40°C to +85°C |
| Lead Finish | NiPdAu |
| MSL Rating | Level-1-260C-UNLIM |
| Typical Applications | LIDAR, ultrasonic sensing, flow meters, gas meters and heat meters |
Pricing & Availability
1 – 99 pcs Request Quote
100 – 999 pcs Request Quote
1,000 – 99,999 pcs Request Quote
100,000+ pcs Best Price
Available Stock 1,037,000 pcs
Why Source This From Us
- ✓ Genuine Texas Instruments components — supplied as TDC7200PWR parts with product identification and traceability support
- ✓ Large available inventory — 1,037,000 pcs listed in stock for prototype, replacement and production requirements
- ✓ Competitive wholesale pricing — quantity-based quotations are available for OEM, ODM and high-volume electronics projects
- ✓ Flexible volume sourcing — suitable for engineering samples, production orders and large-volume procurement
- ✓ Pre-shipment inspection support — part marking, packaging, quantity and product information can be checked before shipment
Overview
The TDC7200PWR is a Texas Instruments Time-to-Digital Converter designed for high-resolution time-of-flight (ToF) measurements. It measures the elapsed time between a START pulse and up to five STOP pulses, providing 55-ps resolution and a self-calibrated time base for precise timing measurements. The device supports two measurement modes covering time intervals from 12 ns to 8 ms and operates from a 2.0-V to 3.6-V supply. It is designed for applications including LIDAR, ultrasonic sensing, water flow meters, gas flow meters and heat flow meters.
Key Features
- ✓ 55-ps time-to-digital conversion resolution
- ✓ 35-ps standard deviation
- ✓ Measurement range from 12 ns to 8 ms across two operating modes
- ✓ Supports up to five STOP signals
- ✓ 0.5-µA low-power consumption at 2 SPS
- ✓ Autonomous multi-cycle averaging mode for low-power operation
- ✓ Internal self-calibrated time base for improved timing accuracy
- ✓ 2.0-V to 3.6-V supply voltage
- ✓ SPI host interface for configuration and register access
- ✓ Compact 14-pin TSSOP package
