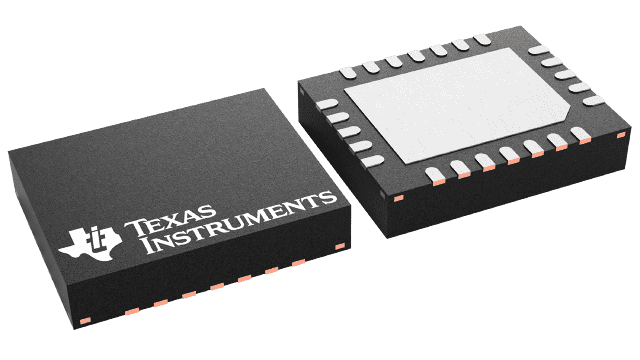

THS6222IRHFR, VQFN-24, TI HPLC Line Driver Amplifier Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | THS6222IRHFR |
| Product Status | ACTIVE / Production |
| Product Type | Differential PLC / HPLC Line Driver Amplifier |
| Architecture | Current-Feedback |
| Number of Channels | 1 |
| Supply Voltage Range | 8 V to 32 V |
| Bandwidth | 128 MHz at specified closed-loop gain |
| Large-Signal Bandwidth | 195 MHz at VO = 16 VPP |
| Minimum Specified Gain | 5 V/V |
| Gain-Bandwidth Product | 128 MHz typical |
| Slew Rate | 5500 V/µs for a 16 V step |
| Output Current | 338 mA at VS = 12 V, 25 Ω load |
| Typical Output Current | 400 mA typical |
| Output Swing | 19.4 VPP at 100 Ω load; 18.6 VPP at 50 Ω load, VS = 12 V |
| Common-Mode Buffer | Integrated midsupply common-mode buffer |
| Quiescent Current | 19.5 mA typical per channel in full-bias mode |
| Adjustable Bias Modes | Full-bias 19.5 mA; Mid-bias 15 mA; Low-bias 10.4 mA |
| Shutdown Mode | Low-power shutdown mode with high output impedance |
| IADJ Function | Adjustable bias current for variable power/performance |
| CMRR | 64 dB typical |
| Input Voltage Noise | 2.7 nV/√Hz typical at flatband |
| Harmonic Distortion | HD2 -80 dBc and HD3 -90 dBc at 1 MHz, VS = 12 V, 50 Ω load |
| Overtemperature Protection | Integrated |
| Operating Temperature | -40°C to +85°C |
| Package | VQFN (RHF), 24 Pins |
| Package Size | 5 mm × 4 mm |
| Package Quantity | 3,000 pcs / LARGE T&R |
| RoHS | Yes |
| REACH | Yes |
| MSL Rating | Level-2-260C-1 YEAR |
| Available Stock | 7,360,227 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | VQFN (RHF), 24-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for THS6222IRHFR
- ✓ Competitive wholesale pricing for volume orders
- ✓ Suitable for broadband PLC and HPLC line-driver applications
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The THS6222IRHFR is a high-speed differential line-driver amplifier from Texas Instruments designed for broadband power line communication (PLC) and high-performance power line communication (HPLC) applications. It uses a current-feedback architecture and is designed to provide high linearity while driving heavy line loads.
The device supports a wide 8 V to 32 V supply range and integrates a midsupply common-mode buffer, reducing the need for additional external circuitry. The THS6222 provides a large-signal bandwidth of up to 195 MHz at 16 VPP and a slew rate of 5500 V/µs for a 16 V step.
To balance performance and power consumption, the THS6222 includes adjustable bias modes of 19.5 mA, 15 mA and 10.4 mA, together with a low-power shutdown mode and an IADJ pin for variable bias control. Integrated overtemperature protection improves device robustness in demanding communication and industrial environments.
The THS6222 supports PLC standards and modulation schemes used in broadband communication systems, including G3, PRIME, ISO 15118 HPGP, G.hn and PRIME BPL, with OOK, FSK and OFDM modulation.
- ✓ Differential broadband PLC and HPLC line-driver amplifier
- ✓ Wide 8 V to 32 V supply range
- ✓ Current-feedback amplifier architecture
- ✓ Integrated midsupply common-mode buffer
- ✓ 195 MHz large-signal bandwidth at 16 VPP
- ✓ 5500 V/µs slew rate for a 16 V step
- ✓ 338 mA output current at VS = 12 V with 25 Ω load
- ✓ 19.4 VPP output swing with 100 Ω load at VS = 12 V
- ✓ 18.6 VPP output swing with 50 Ω load at VS = 12 V
- ✓ Adjustable full-, mid- and low-bias operating modes
- ✓ Low-power shutdown mode for reduced energy consumption
- ✓ IADJ pin for variable bias-current adjustment
- ✓ Integrated overtemperature protection
- ✓ Supports G3, PRIME, ISO 15118 HPGP, G.hn and PRIME BPL PLC standards
- ✓ Supports OOK, FSK and OFDM modulation schemes
- ✓ VQFN (RHF) 24-pin package with exposed thermal pad
- ✓ Operating temperature range of -40°C to +85°C
