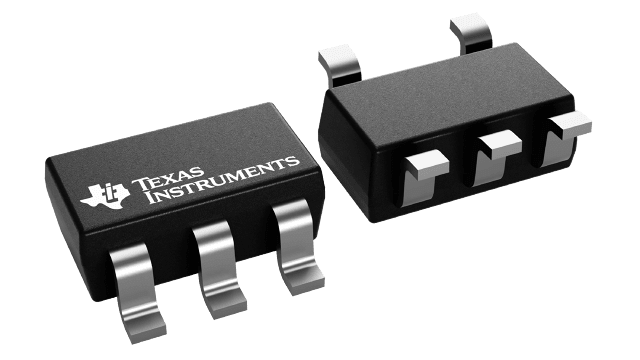

TLV70328DBVR, SOT-23-5, TI 2.8V LDO Regulator Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | TLV70328DBVR |
| Product Status | ACTIVE / Production |
| Product Type | Low-Dropout (LDO) Linear Regulator |
| Output Voltage | 2.8 V fixed |
| Maximum Output Current | 300 mA |
| Input Voltage Range | 2.0 V to 5.5 V |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Output Accuracy | 2% specified accuracy |
| Quiescent Current | 35 µA typical |
| Dropout Voltage at 50 mA | 37 mV typical at VOUT = 2.8 V |
| Dropout Voltage at 100 mA | 75 mV typical at VOUT = 2.8 V |
| Dropout Voltage at 300 mA | 220 mV typical at VOUT = 2.8 V |
| PSRR at 1 kHz | 68 dB typical |
| Effective Capacitance | Stable with as little as 0.1 µF effective capacitance |
| Output Load | Regulates to specified accuracy with no output load |
| Enable Control | Yes |
| Thermal Shutdown | Yes |
| Overcurrent Protection | Current Limit |
| Line Transient Performance | Excellent |
| Load Transient Performance | Excellent |
| Operating Temperature | -40°C to +125°C |
| Package | SOT-23 (DBV), 5 Pins |
| Package Type | SOT-23-5 |
| Package Dimensions | 2.9 mm × 1.6 mm |
| Terminal Pitch | 0.95 mm |
| Lead Finish / Ball Material | NiPdAu | Sn |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| Rating | Catalog |
| US ECCN | EAR99 |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Part Marking | 1B3E |
| Available Stock | 1,817,147 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | SOT-23 (DBV), 5-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for TLV70328DBVR
- ✓ Competitive wholesale pricing for volume orders
- ✓ Fixed 2.8 V output for low-voltage power rails
- ✓ Up to 300 mA output-current capability
- ✓ Low 35 µA typical quiescent current
- ✓ High 68 dB typical PSRR at 1 kHz
- ✓ Stable with only 0.1 µF effective capacitance
- ✓ Compact SOT-23-5 package
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The TLV70328DBVR is a 2.8-V fixed-output low-dropout linear regulator from Texas Instruments. It belongs to the TLV703 family of low-quiescent-current LDOs designed for power-sensitive applications that require stable regulation, low dropout and high power-supply rejection.
The device operates from a 2.0 V to 5.5 V input supply and provides a regulated 2.8 V output with up to 300 mA of load current. Its typical quiescent current is 35 µA, making it suitable for battery-powered electronics and other systems where low standby consumption is important.
For the 2.8-V version, the TLV703 specifies a typical dropout voltage of 37 mV at 50 mA, 75 mV at 100 mA and 220 mV at 300 mA. These low-dropout characteristics allow efficient regulation when the input voltage is relatively close to the required output voltage.
The TLV703 family provides 68 dB typical PSRR at 1 kHz and is designed for excellent line and load transient performance. This helps suppress input-supply variation and noise before it reaches sensitive downstream circuits.
The regulator remains stable with an effective capacitance of only 0.1 µF and regulates to the specified accuracy with no output load. This allows designers to use small and cost-effective capacitors while keeping the external circuit compact.
All TLV703 device versions include thermal shutdown and current limit protection. The 5-pin SOT-23 package also provides an enable input for controlled startup and shutdown.
The TLV70328DBVR is well suited for battery-operated handheld equipment, sensors, embedded controllers, portable electronics and other applications requiring a compact 2.8-V regulated power rail.
- ✓ Fixed 2.8 V output voltage
- ✓ Up to 300 mA output current
- ✓ 2.0 V to 5.5 V input voltage range
- ✓ 2% specified accuracy
- ✓ 35 µA typical quiescent current
- ✓ 68 dB typical PSRR at 1 kHz
- ✓ 37 mV typical dropout at 50 mA
- ✓ 75 mV typical dropout at 100 mA
- ✓ 220 mV typical dropout at 300 mA
- ✓ Stable with 0.1 µF effective capacitance
- ✓ Regulates to specified accuracy with no output load
- ✓ CMOS-compatible enable input
- ✓ Thermal shutdown protection
- ✓ Overcurrent / current-limit protection
- ✓ Excellent line transient performance
- ✓ Excellent load transient performance
- ✓ Low output noise
- ✓ Single regulated output
- ✓ Fixed-output voltage family from 1.2 V to 4.8 V
- ✓ Compact 5-pin SOT-23 package
- ✓ 2.9 mm × 1.6 mm package dimensions
- ✓ Low-IQ architecture for power-sensitive applications
- ✓ Suitable for battery-operated handheld equipment
- ✓ Suitable for sensors, embedded controllers and portable electronics
