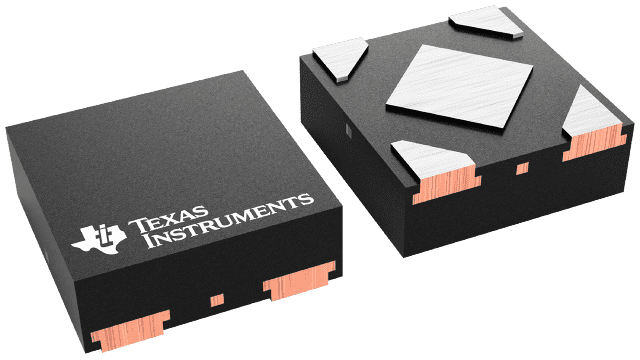

TLV707135DQNR, X2SON-4, TI 1.35V LDO Regulator Wholesale

• ✓ Large available stock for TLV707135DQNR
• ✓ Competitive wholesale pricing for volume orders
• ✓ Fixed 1.35 V output for low-voltage power rails
• ✓ Up to 200 mA output-current capability
• ✓ Low 25 µA typical quiescent current
• ✓ High PSRR for sensitive power-supply rails
• ✓ Stable with only 0.1 µF effective capacitance
• ✓ Ultra-compact 1 mm × 1 mm X2SON-4 package
• ✓ Support for bulk purchasing and production requirements
• ✓ Pre-shipment inspection and order coordination support

The TLV707135DQNR is a 1.35-V fixed-output low-dropout linear regulator from Texas Instruments. It belongs to the TLV707 family of low-quiescent-current, low-noise LDOs designed for power-sensitive electronic applications.

The device operates from a 2.0 V to 5.5 V input supply and provides a regulated 1.35 V output with up to 200 mA of load current. Its typical quiescent current is only 25 µA, making it suitable for battery-powered devices and low-power embedded systems.

The TLV707 family provides typical accuracy of 0.5% and high power-supply rejection, reaching 70 dB at 100 Hz and 50 dB at 1 MHz. These characteristics help maintain a clean regulated supply for sensitive analog and digital loads.

The regulator is stable with an effective capacitance of only 0.1 µF and regulates to the specified accuracy with no output load. This low-capacitance requirement can help reduce the external component size and overall PCB area in compact designs.

Integrated thermal shutdown and overcurrent protection provide protection during excessive-temperature and overload conditions. The enable input allows the regulated output to be controlled by external system logic.

Unlike the TLV707P family, the standard TLV707 device does not include the active pulldown circuit used to quickly discharge the output. The TLV707135DQNR therefore suits applications where low quiescent current and compact size are priorities without requiring active output discharge.

The X2SON (DQN) package measures only 1 mm × 1 mm, providing an extremely small footprint for handheld electronics, sensor modules, wearables and other space-constrained power-management applications.

• ✓ Fixed 1.35 V output voltage
• ✓ Up to 200 mA output current
• ✓ 2.0 V to 5.5 V input voltage range
• ✓ 0.5% typical accuracy
• ✓ 25 µA typical quiescent current
• ✓ 70 dB PSRR at 100 Hz
• ✓ 50 dB PSRR at 1 MHz
• ✓ Stable with 0.1 µF effective capacitance
• ✓ Regulates with no output load
• ✓ CMOS-compatible enable control
• ✓ Thermal shutdown protection
• ✓ Overcurrent protection
• ✓ Excellent line and load transient performance
• ✓ Low-noise LDO architecture
• ✓ Ultra-compact 1 mm × 1 mm X2SON package
• ✓ 1 mm² package footprint
• ✓ Low-IQ architecture for battery-powered systems
• ✓ Fixed-output voltage family from 0.85 V to 5.0 V
• ✓ Suitable for portable and handheld electronics
• ✓ Suitable for sensor power rails
• ✓ Suitable for low-voltage processor and digital power supplies
• ✓ Suitable for compact embedded systems
