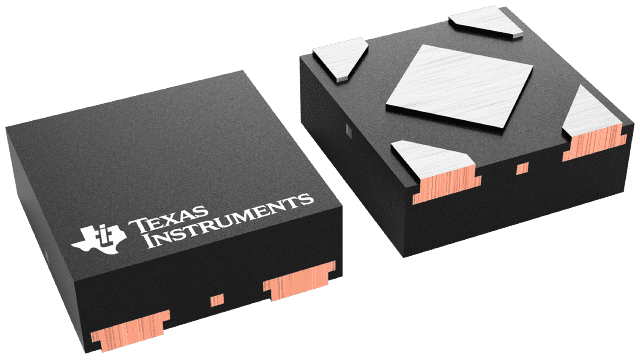

TLV73311PDQNR, X2SON-4, TI 1.1V LDO Regulator Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | TLV73311PDQNR |
| Product Status | ACTIVE / Catalog |
| Product Type | Low-Dropout (LDO) Linear Regulator |
| Output Voltage | 1.1 V fixed |
| Maximum Output Current | 300 mA |
| Input Voltage Range | 1.4 V to 5.5 V |
| Output Voltage Options | 1.0 V to 3.3 V fixed-output family |
| Accuracy | 1% typical; 1.4% maximum |
| Quiescent Current | 34 µA typical |
| Dropout Voltage | 125 mV typical at 300 mA with 3.3 V output |
| PSRR at 1 kHz | 50 dB typical |
| PSRR at 100 kHz | 28 dB typical |
| Output Noise | 120 µVrms |
| Minimum Effective Load Capacitance | 0 µF |
| Capacitor-Free Operation | Yes |
| Output Discharge | Active pull-down |
| Enable | Yes |
| Overcurrent Protection | Foldback overcurrent protection |
| Thermal Protection | Thermal shutdown |
| Number of Regulated Outputs | 1 |
| Thermal Resistance | 219°C/W typical family value |
| Operating Temperature | -40°C to +125°C |
| Package | X2SON (DQN), 4 Pins |
| Package Type | X2SON-4 |
| Package Dimensions | 1.0 mm × 1.0 mm |
| Package Area | 1.0 mm² |
| Lead Finish / Ball Material | NiPdAu |
| MSL Rating | Level-1-260C-UNLIM |
| RoHS | Yes |
| REACH | Yes |
| Rating | Catalog |
| TI Standard Pack | 3,000 pcs / LARGE T&R |
| Available Stock | 5,794,975 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | X2SON (DQN), 4-pin, Tape & Reel |
| TI Standard Pack Quantity | 3,000 pcs / LARGE T&R |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for TLV73311PDQNR
- ✓ Competitive wholesale pricing for volume orders
- ✓ Fixed 1.1 V output for low-voltage power rails
- ✓ Up to 300 mA output-current capability
- ✓ Low 34 µA typical quiescent current
- ✓ Capacitor-free architecture for reduced external component count
- ✓ High PSRR for sensitive power-supply rails
- ✓ Ultra-compact 1 mm × 1 mm X2SON-4 package
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The TLV73311PDQNR is a 1.1-V fixed-output low-dropout linear regulator from Texas Instruments. It belongs to the TLV733P family of ultra-small, low-quiescent-current LDOs designed to provide up to 300 mA of regulated output current.
The device operates from a 1.4 V to 5.5 V input supply and provides a regulated 1.1 V output. With a typical quiescent current of 34 µA, it is suitable for battery-powered and low-power embedded systems where efficient power management is important.
The TLV733 family uses a capacitor-free architecture that remains stable without an input or output capacitor. This can reduce external component count, board area and startup inrush current. Ceramic output capacitors can also be used when required by the application.
The family provides 1% typical accuracy and 1.4% maximum accuracy, together with high power-supply rejection. TI specifies 50 dB typical PSRR at 1 kHz and 28 dB at 100 kHz, helping suppress supply noise on sensitive low-voltage rails.
The TLV733 series also incorporates foldback overcurrent protection and an active pull-down circuit that discharges the output when the regulator is disabled. These functions help improve device behavior during startup, shutdown and overload conditions.
The X2SON (DQN) package measures only 1.0 mm × 1.0 mm, making the TLV73311PDQNR suitable for highly space-constrained electronics, including portable devices, sensors, embedded systems and compact power-management circuits.
