TLV75725PDRVR, WSON-6, TI 2.5V LDO Regulator Wholesale

• ✓ Large available stock for TLV75725PDRVR
• ✓ Competitive wholesale pricing for volume orders
• ✓ Fixed 2.5 V output for low-voltage power rails
• ✓ Up to 1 A output-current capability
• ✓ Low 25 µA typical quiescent current
• ✓ High PSRR for noise-sensitive power supplies
• ✓ Integrated soft-start and active output discharge
• ✓ Foldback overcurrent protection
• ✓ Compact 2 mm × 2 mm WSON-6 package
• ✓ Support for bulk purchasing and production requirements
• ✓ Pre-shipment inspection and order coordination support

The TLV75725PDRVR is a 2.5-V fixed-output low-dropout linear regulator from Texas Instruments. It is part of the TLV757P family of low-quiescent-current, high-accuracy LDO regulators designed to deliver up to 1 A of regulated output current in a compact package.

The device operates from a 1.45 V to 5.5 V input supply and provides a fixed 2.5 V output. The broad input range allows the regulator to be used with a variety of low-voltage power sources and downstream processor or peripheral rails.

With a typical quiescent current of only 25 µA and maximum output accuracy of 1%, the TLV75725PDRVR combines low standby consumption with precise voltage regulation. The device also provides high PSRR, reaching 45 dB at 100 kHz.

The TLV757P family includes an integrated soft-start circuit that provides a monotonic output-voltage rise and helps reduce input-voltage drop during startup. Active output discharge quickly pulls the regulated output low when the device is disabled, providing a predictable shutdown state.

Foldback current limiting and thermal shutdown protect the LDO during overload and excessive-temperature conditions. The device is stable with a 1-µF ceramic output capacitor and is specified for operation from -40°C to +125°C.

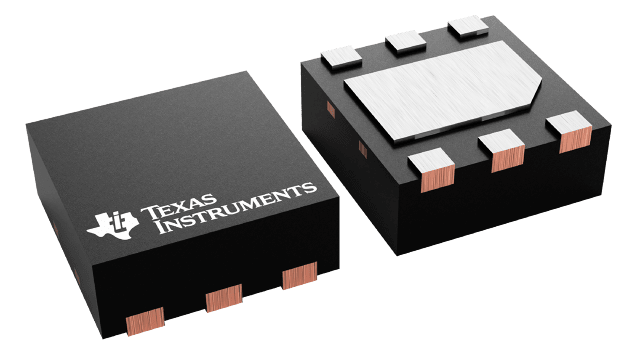

The 2 mm × 2 mm WSON-6 package provides a compact solution for high-current, space-constrained power-management designs. The TLV75725PDRVR is suitable for processor power rails, communication equipment, industrial electronics and other applications requiring a compact 2.5-V regulated supply.

• ✓ Fixed 2.5 V output voltage
• ✓ Up to 1 A output current
• ✓ 1.45 V to 5.5 V input voltage range
• ✓ 1% maximum output accuracy
• ✓ 25 µA typical quiescent current
• ✓ 45 dB PSRR at 100 kHz
• ✓ 71.5 µVrms typical output noise
• ✓ 425 mV maximum dropout at 1 A with 3.3 V output
• ✓ Stable with a 1-µF ceramic output capacitor
• ✓ Integrated soft-start
• ✓ Monotonic VOUT rise during startup
• ✓ Active output discharge
• ✓ Foldback current-limit protection
• ✓ Thermal shutdown protection
• ✓ Enable control for low-power shutdown
• ✓ Fixed-output voltage family from 0.6 V to 5.0 V
• ✓ 50-mV output-voltage selection steps across the family
• ✓ Compact 2 mm × 2 mm WSON-6 package
• ✓ 4 mm² package footprint
• ✓ Low-IQ architecture for power-sensitive systems
• ✓ Good line and load transient performance
• ✓ Suitable for processor and FPGA power rails
• ✓ Suitable for communication and industrial electronics
• ✓ Suitable for compact point-of-load power regulation
