TMP236AQDBZRQ1, SOT-23-3, TI Automotive Temperature Sensor Wholesale
Description
Reviews
| Manufacturer | Texas Instruments (TI) |
|---|---|
| Part Number | TMP236AQDBZRQ1 |
| Product Status | ACTIVE / Production |
| Product Type | Automotive Analog Output Temperature Sensor |
| Automotive Qualification | AEC-Q100 Qualified, Grade 1 |
| Functional Safety | Functional Safety-Capable |
| Sensor Gain | 19.5 mV/°C |
| Output Offset at 0°C | 400 mV typical |
| Temperature Accuracy | ±0.5°C typical at 25°C |
| Maximum Error | ±1.5°C max at 0°C to +70°C; ±2.5°C max at -10°C to +125°C |
| Supply Voltage | 3.1 V to 5.5 V |
| Quiescent Current | 9 µA typical |
| Output Current | 500 µA maximum |
| Load Capacitance | Up to 1000 pF |
| Turn-On Time | 800 µs typical |
| Output Type | Analog Voltage Output |
| Operating Temperature | -40°C to +125°C |

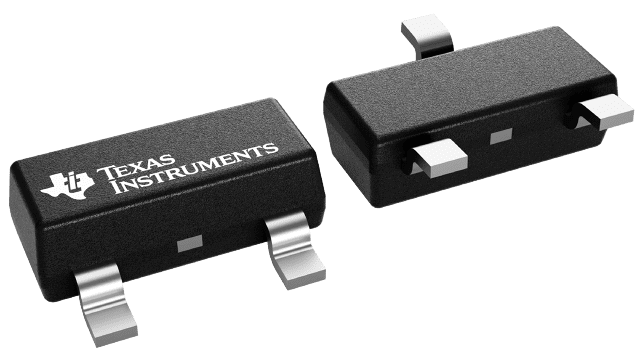

| Package | SOT-23 (DBZ), 3 Pins |
| Package Dimensions | 2.92 mm × 2.37 mm |
| Output Protection | Short-Circuit Protected |
| Interface | Analog Output |
| Available Stock | 1,019,327 pcs |
|---|---|
| Pricing | Competitive wholesale pricing based on order quantity |
| Packaging | SOT-23 (DBZ), Tape & Reel |
| Supply | Available for bulk and production-volume orders |
- ✓ Large available stock for TMP236AQDBZRQ1
- ✓ Competitive wholesale pricing for volume orders
- ✓ Suitable for automotive electronics and temperature-monitoring applications
- ✓ Support for bulk purchasing and production requirements
- ✓ Pre-shipment inspection and order coordination support
The TMP236AQDBZRQ1 is an automotive-grade analog output temperature sensor from Texas Instruments. It provides a temperature-proportional output voltage with a positive sensor gain of 19.5 mV/°C and a typical output offset of 400 mV at 0°C.
The TMP236-Q1 is AEC-Q100 qualified for automotive applications and operates across a temperature range of -40°C to +125°C. The device operates from a 3.1 V to 5.5 V supply while maintaining very low quiescent current, making it suitable for temperature-monitoring circuits with strict power requirements.
The sensor provides ±0.5°C typical accuracy at 25°C. For the SOT-23 package, the specified maximum error is ±1.5°C from 0°C to +70°C and ±2.5°C from -10°C to +125°C. The analog output can provide up to 500 µA and drive capacitive loads up to 1000 pF.
- ✓ Automotive-grade analog output temperature sensor
- ✓ AEC-Q100 qualified Grade 1 device
- ✓ 19.5 mV/°C positive temperature sensor gain
- ✓ 400 mV typical output offset at 0°C
- ✓ ±0.5°C typical accuracy at 25°C
- ✓ ±1.5°C maximum error from 0°C to +70°C for SOT-23
- ✓ ±2.5°C maximum error from -10°C to +125°C
- ✓ Wide 3.1 V to 5.5 V supply voltage range
- ✓ Low 9 µA typical quiescent current
- ✓ 500 µA maximum output current
- ✓ Drives capacitive loads up to 1000 pF
- ✓ Short-circuit protected analog output
- ✓ Compact SOT-23 (DBZ) 3-pin package
- ✓ Footprint compatible with LMT8x-Q1, LM50-Q1 and LM20 temperature sensors
- ✓ Suitable for automotive temperature monitoring and analog ADC interfaces
